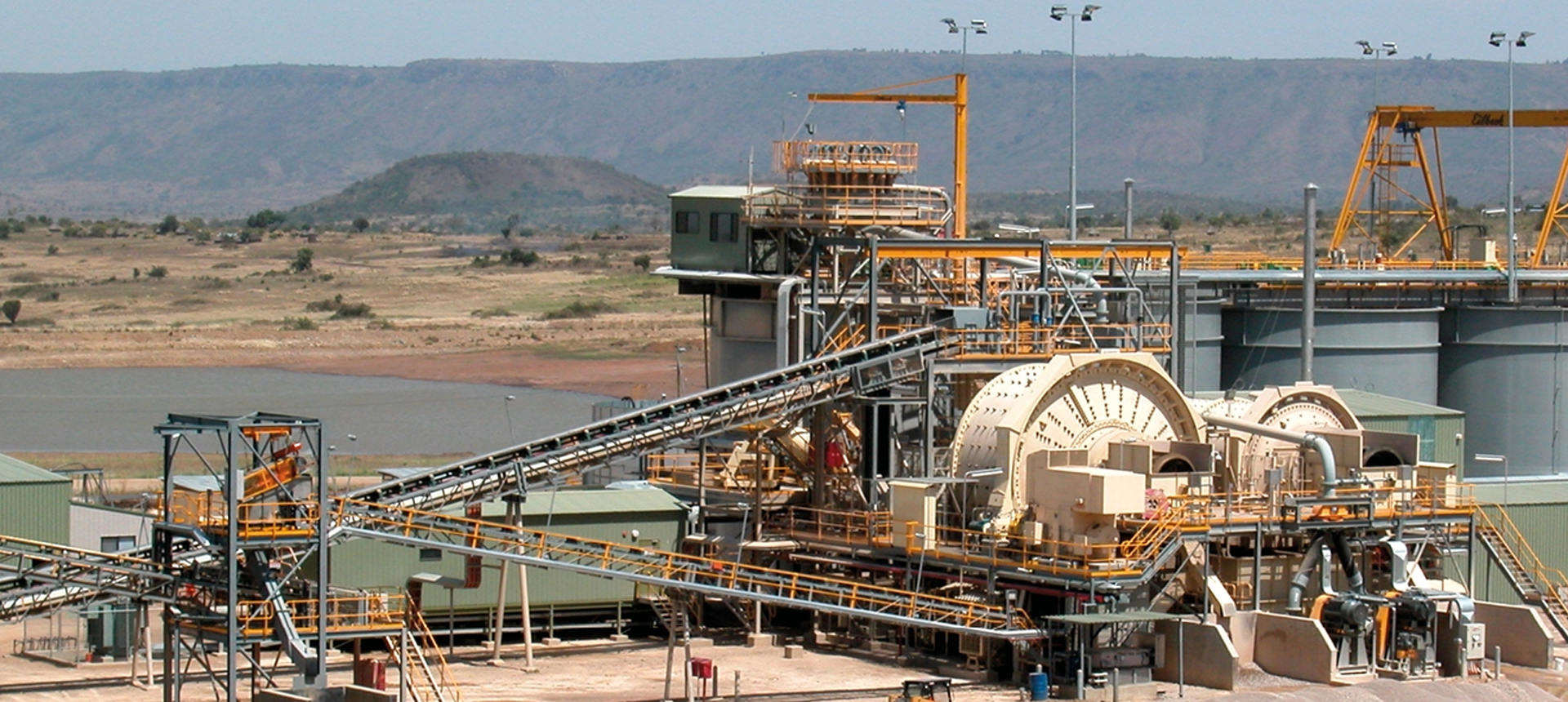

Iron Ore Processing Plant Iron Ore Processing Plant

Iron Ore Processing Plant

Raw Material : Iron Ore

Capacity : 1-150t/h

Hot Sale : 1-10T/H, 10-50T/H, 50-100T/H

Processing Methods : Magnetic Separation Process

Chat OnlineChat Online Get QuoteGet Quote

Introduction of Iron Ore Processing Plant

At present, the common iron ore is magnetite, limonite and hematite (collectively called weak magnetic ore). According to the magnetic strength of the ore, we choose different iron ore dressing processes. The magnetic separation process is used as the main method of iron ore beneficiation.

The iron ore process is advanced and the utilization rate of magnetite can reach 90%. And the configuration parts cited in the magnetite beneficiation production line are all wear-resistant materials, which can greatly improve the efficiency of the equipment.

Introduction of Iron Ore Processing Plant

Iron Ore Processing and Production Technology

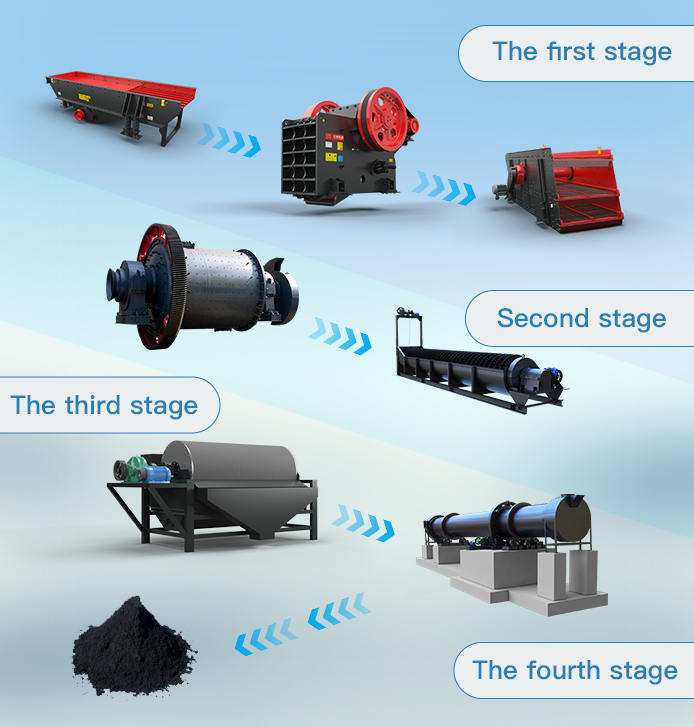

Core equipment: feeder, jaw crusher, vibrating screen, ball mill, spiral classifier, magnetic separator, dryer The iron ore processing and production technology mainly includes four processes: crushing and screening, grinding, magnetic separation and drying.

The first stage: Crushing And ScreeningLarge pieces of iron ore are evenly fed into the jaw crusher by the vibrating feeder through the silo for crushing; after being screened by the vibrating screen, the stone that meets the requirements enters the second stage, otherwise it undergoes secondary crushing;

Second stage: GrindingMaterials with a size of 0-25 mm are evenly sent to the ball mill for grinding, and are screened by a spiral classifier. Materials that do not meet the requirements are sent to the ball mill for continued grinding;

The third stage: Magnetic SeparationSend the iron powder that meets the mineral processing requirements into the magnetic separator for strong magnetic separation and magnetic separation to remove impurities;

The fourth stage: DryingThe obtained iron powder is sent to a dryer for drying to obtain iron fine powder.

Iron ore processing and production technology

Process Advantages

Iron Ore Related Case Sites

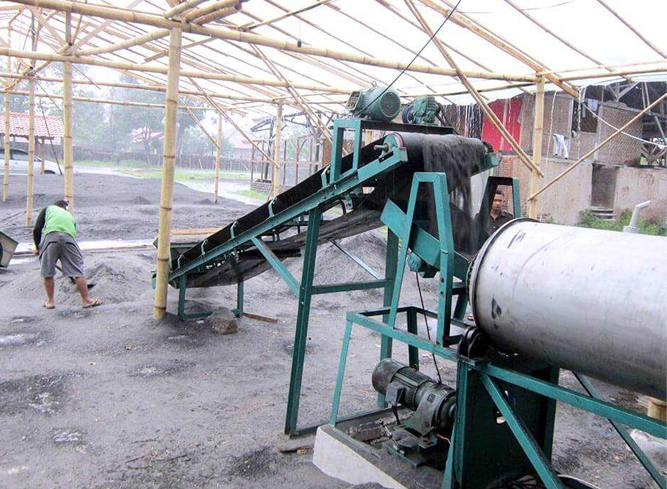

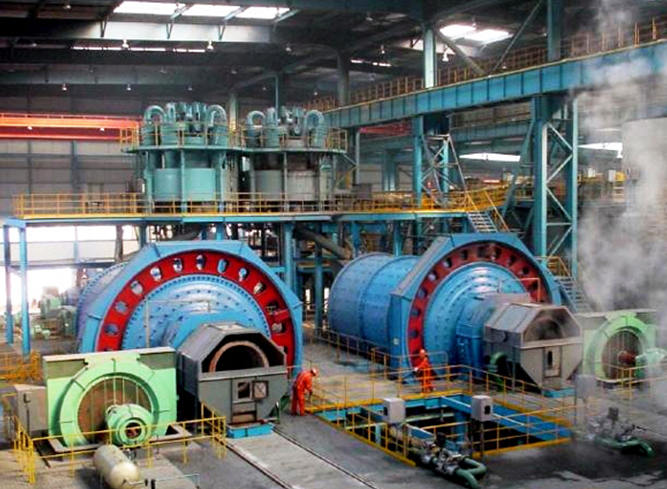

100tph Iron Ore Processing Plant in India

100tph Iron Ore Processing Plant in India

Raw Material: Haematite (Fe2O3)

Project Design: Free Customized Design by HXJQ

Equipment: Ball Mill, Spiral Classifier, Magnetic Separator and other related equipment

Order Date: January 2024

Customized Design Customized Design

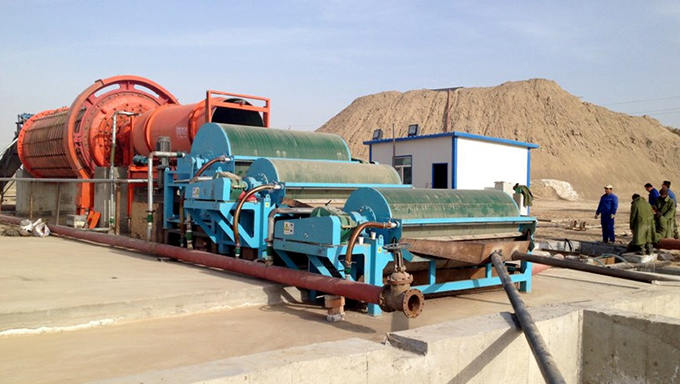

50tph Ilmenite Ore Beneficiation Plant in Egypt

50tph Ilmenite Ore Beneficiation Plant in Egypt

Raw Material: Ilmenite

Project Design: Free Customized Design by HXJQ

Equipment: Ball Mill, Magnetic Separator and Spiral Chute

Order Date: December 2022

Customized Design Customized Design

What We Offer?

HXJQ Machinery has established a comprehensive service delivery system to ensure stable operation and to save lots of trouble and maintenance costs for you.

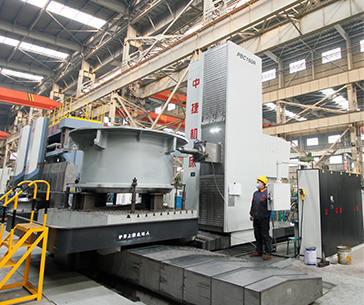

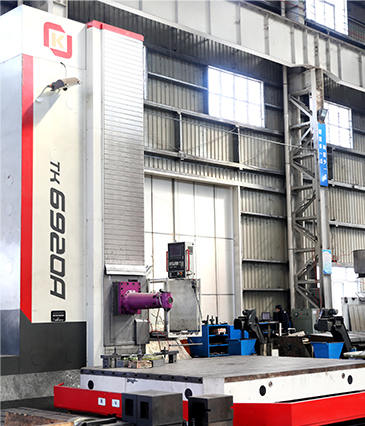

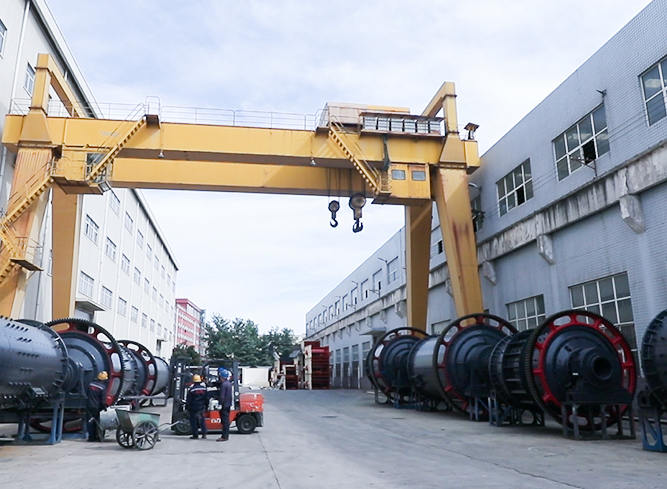

Our Strength

Serve 160 countries around the world
