“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

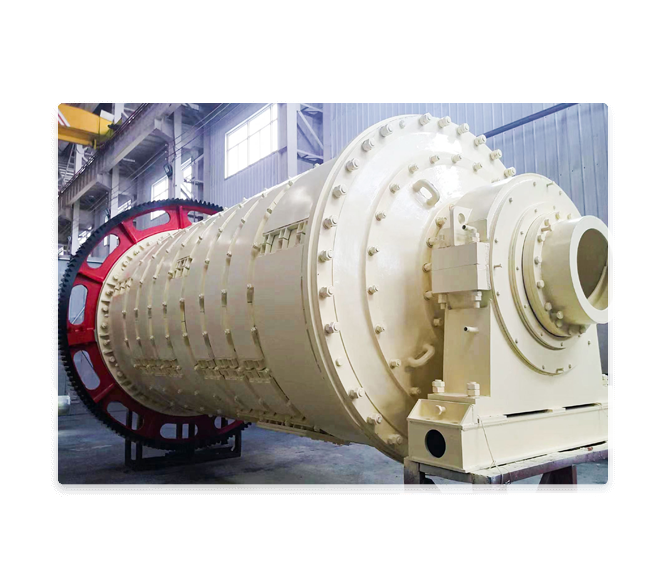

Air-swept coal mill is the main equipment for cement clinker production in rotary kilns.It is also suitable for pulverizing equipment systems such as thermal power generation,metallurgical industry,chemical industry,and sugar industry.Main features:large production capacity;easy adjustment of fineness;compact structure,smooth operation,easy installation and maintenance,long service life;strong adaptability to materials,and can grind coal of various hardnesses.
| (Dia.×Length) (m) |
Speed (r/min) |
Griding Media Loading (t) |
Main Motor (KW) |
Main Reducer |
| Φ1.7×2.5 | 24.5 | 7.5 | 95 | ZD40-8 |
| Φ1.8×(3+1.5) | 25 | 7.8 | 95 | ZD40-10 |
| Φ2.2×3 | 22 | 13 | 180 | ZD50-9 |
| Φ2.2×4.4 | 22.4 | 19 | 240 | ZD60-11 |
| Φ2.4×(4.5+2) | 20.4 | 20.8 | 355 | ZD70-8 |
| Φ2.4×4.75 | 20.4 | 22 | 280 | ZD60-8 |
| Φ2.6×(5.25+2.25) | 19.7 | 28 | 400 | ZDY400 |
| Φ2.8×(5+3) | 18.7 | 32 | 500 | MBY560 |
| Φ2.8×(5.75+2.25) | 18.7 | 34 | 500 | MBY560 |
| Φ3×(6.5+2.5) | 18.3 | 43 | 630 | MBY560 |
| Φ3.2×(6.5+2) | 17.08 | 50 | 710 | MBY630 |
| Φ3.2×(7+2.5) | 17.08 | 55 | 710 | MBY630 |
| Φ3.4×(6+3) | 17.47 | 54 | 900 | MBY800 |
| Φ3.4×(6.5+2.5) | 17.47 | 54 | 900 | JDX-80 |
| Φ3.5×8 | 17.2 | 80 | 1000 | MBY800 |
| Φ3.8×(7+2.5) | 16.7 | 75.5 | 1250 | MBY(X)800 |
| Φ3.8×(7.5+3) | 16.7 | 80 | 1400 | JDX-90 |
| Φ3.8×(7.75+3.5) | 16.7 | 85 | 1400 | JDX-90 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| (Dia.×Length) (m) |
Speed (r/min) |
Griding Media Loading (t) |
| Φ1.7×2.5 | 24.5 | 7.5 |
| Φ1.8×(3+1.5) | 25 | 7.8 |
| Φ2.2×3 | 22 | 13 |
| Φ2.2×4.4 | 22.4 | 19 |
| Φ2.4×(4.5+2) | 20.4 | 20.8 |
| Φ2.4×4.75 | 20.4 | 22 |
| Φ2.6×(5.25+2.25) | 19.7 | 28 |
| Φ2.8×(5+3) | 18.7 | 32 |
| Φ2.8×(5.75+2.25) | 18.7 | 34 |
| Φ3×(6.5+2.5) | 18.3 | 43 |
| Φ3.2×(6.5+2) | 17.08 | 50 |
| Φ3.2×(7+2.5) | 17.08 | 55 |
| Φ3.4×(6+3) | 17.47 | 54 |
| Φ3.4×(6.5+2.5) | 17.47 | 54 |
| Φ3.5×8 | 17.2 | 80 |
| Φ3.8×(7+2.5) | 16.7 | 75.5 |
| Φ3.8×(7.5+3) | 16.7 | 80 |
| Φ3.8×(7.75+3.5) | 16.7 | 85 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
For customization, please contact us.
Henan Hongxing Mining Machinery Co.,Ltd.(HXJQ) covers an area of 350,000 square menters which includes 260,000 square menters of heavey duty industrial workshops.
covers an area of 350,000 square menters .
heavy duty industrial workshops.
which includes 260,000 square menters.
Is a manufacturer of high-end mining machinery in Asia.
All major ports can deliver goods
Two weeks of delivery, custom cycle, please consult.
The International standard for some parts, if there are no relevant accessories in the local area, we provide engineer after-sales service.
