Mobile Crusher

Mobile Crusher

Application fields: mining, stone mining, highway (railway) construction, urban construction waste treatment, etc.

  • Processing capacity: 85-650 t/h
  • Feeding size: 500-800 mm

“40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote
China

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

Mobile crusher is a kind of mining machinery equipment, which integrates feeding, conveying, crushing, and making and sieving. It is mainly used for metallurgy, chemical industry, building materials, water, and electricity as a mobile stone station business. With multiple combinations, users can use different solutions to meet different field conditions.

mobile crusher applications and applicable materials

Mobile Crusher Features:

  1. Strong Mobility : Superior performance of complete set, saving time to go in & out and convert the working site

  2. Minimize the Cost : Eliminate the intermediate links in addition to the re-breaking at the site, reducing the transportation cost of materials

  3. High Adaptability : It can be operated independently by a single unit, or it can be flexibly composed of units for combination process

  4. Customized Design : Customized design can be made according to different crushing industries, “first crushed and then sieved” or “first sieved and then crushed”, crushing and screening can also be carried out separately

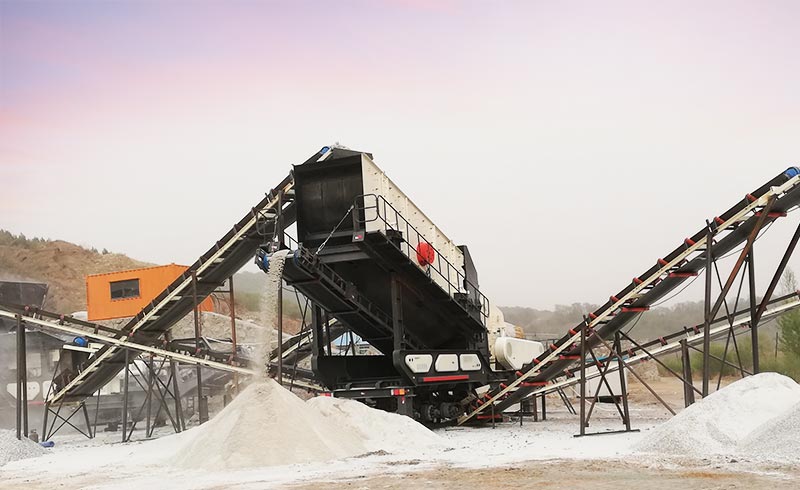

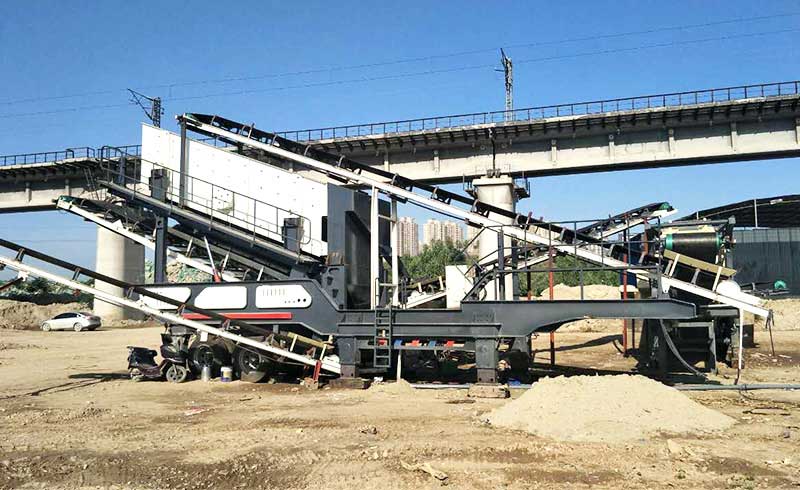

mobile crusher production site
customers visit the factory

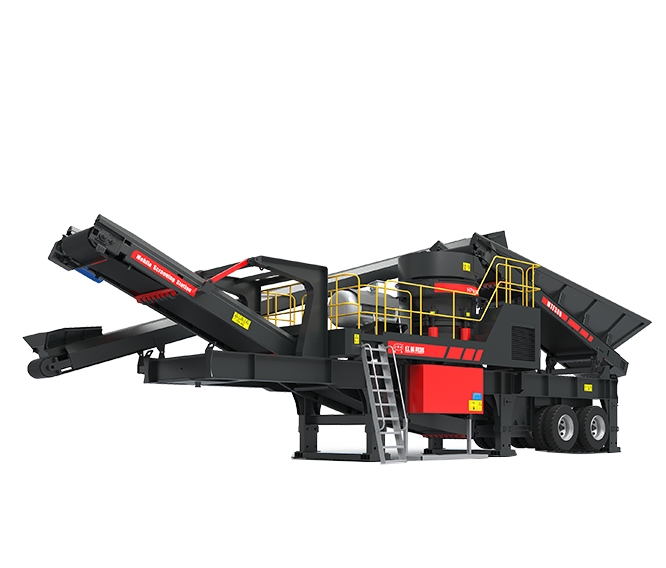

mobile crusher station
Product
presentation

Types of Mobile Crusher

There are two main types of mobile crushers: the crawler mobile crusher and the wheeled mobile crusher. These selections include jaw crusher, cone crusher, etc.

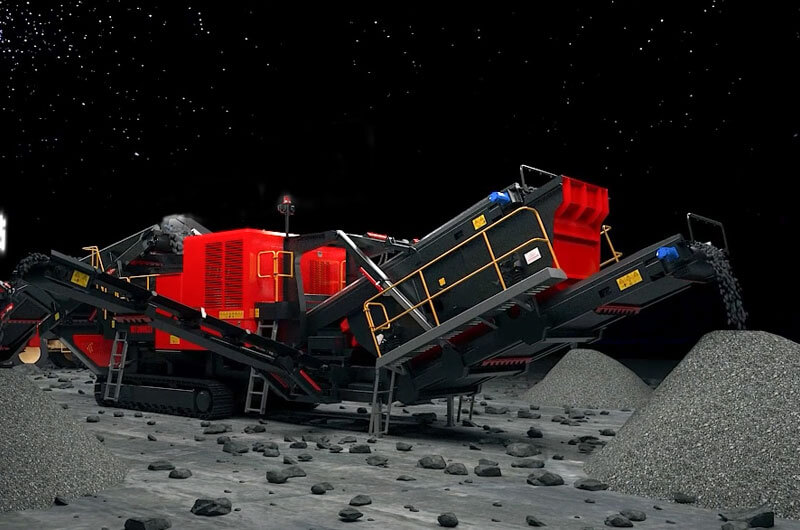

The crawler mobile crusher: Strong mobility, reduce material transportation costs. Can be applied to a variety of complex crushing field conditions.

The wheeled mobile crusher: Customized design can be made according to different crushing industries, “first crushed and then sieved” or “first sieved and then crushed”, crushing and screening can also be carried out separately.

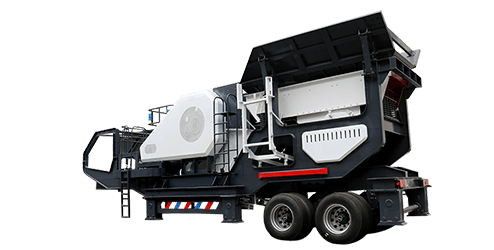

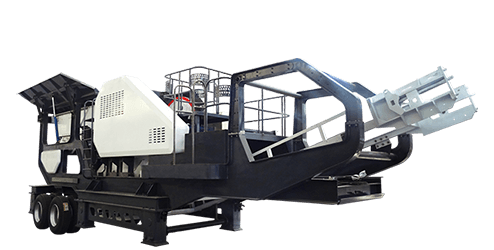

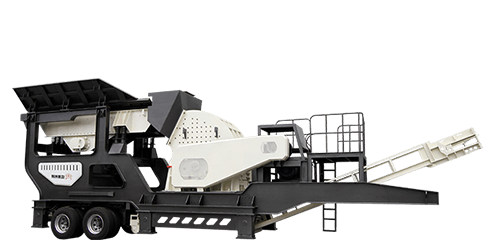

Mobile jaw crusher Mobile impact crusher
Bin Volume:5-8m³
 Bin Volume:5-10m³
Speed:0-20m/min
Speed:0-20m/min
Weight:38-52.5t
Weight:43-65t
Capacity:300-450tph
 Capacity:130-480tph

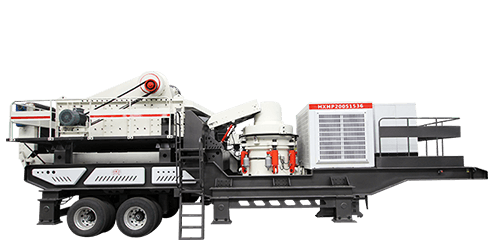

Mobile cone crusher Mobile vibrating screen
Bin Volume:4-6m³
 Bin Volume:4-6m³
Speed:0-20m/min
 Speed:0-20m/min
Weight:40-55t
Weight:32-43t
Capacity:100-400tph
Capacity:400-580tph

Technical data

  • Mobile Jaw Crusher
  • Mobile Impact Crusher
  • Mobile Cone Crusher
  • Tracked Jaw Crusher
  • Tracked Impact Crusher
  • Tracked Cone Crusher
Model HX938HD86 HX1149HD98 HX1349HD110 HX1349HD125
Transportation lenght(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Lenght(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dualaxial Triaxial Triaxial Triaxial
Jaw Crusher HD86 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge opening range 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Feeder ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5m B1000×9.5m B1000×11m B1200×11m
Side-opening Belt conveyor(optional) B500×3m B650×3.5m B650×4m B650×4m
Gensrt(optional) 200KW 250KW 270KW 400KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
Model HX938F1210 HX938F1214 HX1149F1315 HX938F1110 HX1349F1315
Transportation lenght(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum Lenght(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Impact crusher PE-1210 PE-1214 PF-1315 HD1110 HD1315
Maximum Feeding Size(mm) 350 350 500 400 700
Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(optional) B500×3.2m B500×3.2m B650×4m B650×4m B650×4m
Gensrt(optional) 320KW 320KW 400KW 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12
Model HX3S185GYS300 HX3S216GYS400 HX3S216HP300
Transportation length(mm) 14500 15000 16000
Transportation Width(mm) 3000 3000 4550
Transportation Height(mm) 4400 4500 4600
Maximum Length(mm) 17000 16000 17000
Maximum Width(mm) 3400 3900 6900
Maximum Height(mm) 5800 6500 4700
Weight(t) 34.5 49.5 41
Tire Configuration Dualaxial Triaxial Triaxial
Cone crusher GYS300 GYS400 HP300
Discharging belt Conveyor B650×15M×2 B800×15M×2 B800×15M×2
Return belt conveyor B650×14M B800×14M B800×16M
CONveyor Belt For Final Products B500×15M B800×6M B650×15M×2
Under Virbrating Screen B800×7M B800×8M B800×9M
Vibrating Screen 3YK1854 3YK2160 3YK2160
Model WT96 WT106 WT120
Dimensions of Transmission Devices Length 14200mm 14900mm 15200mm
Width 2900mm 3000mm 3200mm
Height 3470mm 3600mm 3700mm
Weight 38t 50t 65t
Feeder Hopper Volume 5m³ 5m³ 6m³
Loading Height 3900mm 4100mm 4300mm
FeederModel GZDT3895 GZDT1145 GZDT1245
Unearthed Belt Conveyors Dimensions(Width×Length) 800×9000mm 1000×10000mm 1200×12000mm
Dumping Height 3100mm 3200mm 3400mm
Crusher Model CJ96 CJ106 CJ120
Inlet Dimensions 930×580mm 1060×700mm 1200×870mm
Max.Feeding Size 480mm 560mm 700mm
Main Belt Conveyor Dimensions(Width×Length) 800×9000mm 1000×10000mm 1200×12000mm
Dumping Height 3100mm 3200mm 3400mm
Iron Remover Model RCYQ-8 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 112.9kw 141.4kw 196.2kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
Model WT110 WT110S WT1213 WT1213S WT1315
Dimensions of Transmission Devices Length 14000mm 16000mm 15500mm 19000mm 17000mm
Width 3000mm 3200mm 3200mm 3600mm 3200mm
Height 3600mm 3600mm 3800mm 3800mm 3800mm
Weight 40t 45t 53t 60t 65t
Feeder Hopper Volume 3m³ 3m³ 5m³ 5m³ 5m³
Loading Height 3900mm 4000mm 3900mm 4100mm 4000mm
Primary Screen Power 5.2kw 5.2kw 6.12kw 6.12kw 6.12kw
Sieve Dimensions 1040×924mm 1040×924mm 1140×924mm 1140×924mm 1240×930mm
Crusher Model CI1110M CI1110M CI1213M CI1213M CI1315M
Inlet Dimensions 1020×860mm 1020×860mm 1320×900mm 1320×900mm 1540×900mm
Max.Feeding Size 400mm 400mm 500mm 500mm 600mm
The Feeder at the Bottom Hopper Volume 0.8m³ 0.8m³ 1m³ 1m³ 1.5m³
Power 5.2kw 5.2kw 5.2kw 5.2kw 6.12kw
Unearthed Belt Conveyors Dimensions(Width×Length) 650×3500mm 650×3500mm 650×3500mm 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm 2200mm 2200mm 2400mm
Main Belt Conveyor Dimensions(Width×Length) 1000×8500mm 1000×8500mm 1000×9900mm 1000×9900mm 1200×11000mm
Dumping Height 3300mm 3300mm 3500mm 3500mm 3800mm
Secondary Screen Power ○ 6.12kw ○ 6.12kw ○
Sieve Dimensions ○ 1500×3600 ○ 1500×4200 ○
Belt Conveyors at the Bottom Dimensions(Width×Length) ○ 1000×5800mm ○ 1000×6200mm ○
Dumping Height ○ 2900mm ○ 3000mm ○
Transferring Belt Conveyor Dimensions(Width×Length) ○ 650×2500mm ○ 650×2800mm ○
Dumping Height ○ 1400mm ○ 1400mm ○
Belt Conveyors for Discharging Material Dimensions(Width×Length) ○ 500×8000mm ○ 500×9200mm ○
Dumping Height ○ 4200mm ○ 4500mm ○
Iron Remover Model RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 106kw 132kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 253kw 274kw 304kw 324.4kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
Model WT160SC WT250SC WT300HPM WT400HPM
Dimensions of Transmission Devices Length 16800mm 19000mm 19000mm 19500mm
Width 3500mm 3600mm 3900mm 3900mm
Height 3700mm 3800mm 3800mm 3800mm
Weight 50t 60t 55t 65t
Belt Conveyor Hopper Volume 3m³ 3m³ 3m³ 3m³
Loading Height 2600m 2600m 2600m 2800m
Loading Width 1900mm 1900mm 1900mm 1900mm
Dimensions(Width×Length) 1000×6300mm 1000×6300mm 1000×6300mm 1200×6500mm
Crusher Model SC160 SC250 HP300 HP400
Inlet Dimensions 75-360mm 75-450mm 60-200mm 68-280mm
Max.Feeding Size 360mm 450mm 200mm 280mm
Min. Discharging Size 8-25mm 8-35mm 8-45mm 8-51mm
Main Belt Conveyor Dimensions(Width×Length) 1000×9000mm 1000×10000mm 1000×10000mm 1000×11000mm
Dumping Height 3100mm 3490mm 3490mm 3690mm
Secondary Screen Dumping Height 4200mm 4200mm 4400mm 4400mm
Model HX1536 HX1536 HX1536 HX1536
Sieve Dimensions 1500×3600mm 1500×3600mm 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions(Width×Length) 1000×5600mm 1000×5600mm 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3020mm 3020mm 3300mm
Belt Conveyors to the Sieve Dimensions(Width×Length) 650×2100mm 650×2100mm 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) 650×10000mm 650×10000mm 650×11000mm 650×11000mm
Dumping Height 4200mm 4200mm 4400mm 4400mm
Diesel Engine Power 96kw 132kw 106kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 207.12kw 297.12kw 267.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
  • Mobile Jaw Crusher
  • Mobile Impact Crusher
  • Mobile Cone Crusher
  • Tracked Jaw Crusher
  • Tracked Impact Crusher
  • Tracked Cone Crusher

Model HX938HD86 and HX1149HD98

Model HX938HD86 HX1149HD98
Transportation lenght(mm) 12600 13500
Transportation Width(mm) 2600 2700
Transportation Height(mm) 3870 4200
Maximum Lenght(mm) 12500 14000
Maximum Width(mm) 4100 4500
Maximum Height(mm) 4100 4900
Weight(t) 39 57
tIRE Configuration Dualaxial Dualaxial
Jaw Crusher HD86 HD98
Maximum Feeding Size(mm) 500 550
Discharge opening range 50-150 75-175
Capacity(t/h) 85-275 110-350
Vibrating Feeder ZSW380×95 ZSW420×110
Main Belt Conveyor B800×8.5m B1000×9.5m
Side-opening Belt conveyor(optional) B500×3m B650×3.5m
Gensrt(optional) 200KW 250KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-10

Model HX1349HD110 and HX1349HD125

Model HX1349HD110 HX1349HD125
Transportation lenght(mm) 14500 15200
Transportation Width(mm) 2800 2900
Transportation Height(mm) 4450 4500
Maximum Lenght(mm) 16100 16700
Maximum Width(mm) 5100 5100
Maximum Height(mm) 5000 5300
Weight(t) 55 65
Tire Configuration Dualaxial Dualaxial
Jaw Crusher HD110 HD125
Maximum Feeding Size(mm) 660 800
Discharge opening range 100-200 125-225
Capacity(t/h) 215-510 280-650
Vibrating Feeder ZSW490×130 ZSW490×130
Main Belt Conveyor B1000×11m B1200×11m
Side-opening Belt conveyor(optional) B650×4m B650×4m
Gensrt(optional) 270KW 400KW
Iron separator(optional) RCYD(C)-10 RCYD(C)-12

Model HX938F1210 and HX938F1214 and HX1149F1315

Model HX938F1210 HX938F1214 HX1149F1315
Transportation lenght(mm) 12000 12000 13900
Transportation Width(mm) 2550 2550 2900
Transportation Height(mm) 3900 3900 4450
Maximum Lenght(mm) 12500 12500 13900
Maximum Width(mm) 3250 3260 3250
Maximum Height(mm) 5100 5200 5200
Weight(t) 39 44 54
Impact crusher PE-1210 PE-1214 PF-1315
Maximum Feeding Size(mm) 350 350 500
Capacity(t/h) 70-130 100-180 130-250
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M
Side-opening Belt conveyor(optional) B500×3.2m B500×3.2m B650×4m
Gensrt(optional) 320KW 320KW 400KW
iron separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10

Model HX938F1110 and HX1349F1315

Model HX938F1110 HX1349F1315
Transportation lenght(mm) 15450 15450
Transportation Width(mm) 2950 2950
Transportation Height(mm) 4500 4500
Maximum Lenght(mm) 15450 15450
Maximum Width(mm) 3250 3250
Maximum Height(mm) 5200 5200
Weight(t) 62 62
Impact crusher HD1110 HD1315
Maximum Feeding Size(mm) 400 700
Capacity(t/h) 112 280
Vibrating Feeder ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×11M B1200×11M
Side-opening Belt conveyor(optional) B650×4m B650×4m
Gensrt(optional) 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-12
Model HX3S185GYS300 HX3S216GYS400 HX3S216HP300
Transportation length(mm) 14500 15000 16000
Transportation Width(mm) 3000 3000 4550
Transportation Height(mm) 4400 4500 4600
Maximum Length(mm) 17000 16000 17000
Maximum Width(mm) 3400 3900 6900
Maximum Height(mm) 5800 6500 4700
Weight(t) 34.5 49.5 41
Tire Configuration Dualaxial Triaxial Triaxial
Cone crusher GYS300 GYS400 HP300
Discharging belt Conveyor B650×15M×2 B800×15M×2 B800×15M×2
Return belt conveyor B650×14M B800×14M B800×16M
CONveyor Belt For Final Products B500×15M B800×6M B650×15M×2
Under Virbrating Screen B800×7M B800×8M B800×9M
Vibrating Screen 3YK1854 3YK2160 3YK2160

Model WT96 and WT106

Model WT96 WT106
Dimensions of Transmission Devices Length 14200mm 15200mm
Width 2900mm 3000mm
Height 3470mm 3600mm
Weight 38t 50t
Feeder Hopper Volume 5m³ 6m³
Loading Height 3900mm 4100mm
FeederModel GZDT3895 GZDT1145
Unearthed Belt Conveyors Dimensions(Width×Length) 800×9000mm 1200×12000mm
Dumping Height 3100mm 3200mm
Crusher Model CJ96 CJ120
Inlet Dimensions 930×580mm 1060×700mm
Max.Feeding Size 480mm 560mm
Main Belt Conveyor Dimensions(Width×Length) 800×9000mm 1200×12000mm
Dumping Height 3100mm 3200mm
Iron Remover Model RCYQ-8 RCYQ-10
Diesel Engine Power 96kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 112.9kw 196.2kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model WT120

Model WT120
Dimensions of Transmission Devices Length 15200mm
Width 3200mm
Height 3700mm
Weight 65t
Feeder Hopper Volume 6m³
Loading Height 4300mm
FeederModel GZDT1245
Unearthed Belt Conveyors Dimensions(Width×Length) 1200×12000mm
Dumping Height 3400mm
Crusher Model CJ120
Inlet Dimensions 1200×870mm
Max.Feeding Size 700mm
Main Belt Conveyor Dimensions(Width×Length) 1200×12000mm
Dumping Height 3400mm
Iron Remover Model RCYQ-10
Diesel Engine Power 132kw
Manufacturer Carter Perkins
The Main Machine Power 196.2kw
Ways of Controlling Wired/Wireless (optional)

Model WT110 and WT110S

Model WT110 WT110S
Dimensions of Transmission Devices Length 14000mm 17000mm
Width 3000mm 3200mm
Height 3600mm 3600mm
Weight 40t 45t
Feeder Hopper Volume 3m³ 5m³
Loading Height 3900mm 4000mm
Primary Screen Power 5.2kw 6.12kw
Sieve Dimensions 1040×924mm 1040×924mm
Crusher Model CI1110M CI1315M
Inlet Dimensions 1020×860mm 1020×860mm
Max.Feeding Size 400mm 400mm
The Feeder at the Bottom Hopper Volume 0.8m³ 1.5m³
Power 5.2kw 5.2kw
Unearthed Belt Conveyors Dimensions(Width×Length) 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm
Main Belt Conveyor Dimensions(Width×Length) 1000×8500mm 1200×11000mm
Dumping Height 3300mm 3300mm
Secondary Screen Power ○ ○
Sieve Dimensions ○ 1500×3600
Belt Conveyors at the Bottom Dimensions(Width×Length) ○ ○
Dumping Height ○ 2900mm
Transferring Belt Conveyor Dimensions(Width×Length) ○ ○
Dumping Height ○ 1400mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) ○ ○
Dumping Height ○ 4200mm
Iron Remover Model RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 253kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model WT1213 and WT1213S

Model WT1213 WT1213S
Dimensions of Transmission Devices Length 15500mm 17000mm
Width 3200mm 3600mm
Height 3800mm 3800mm
Weight 53t 60t
Feeder Hopper Volume 5m³ 5m³
Loading Height 3900mm 4100mm
Primary Screen Power 6.12kw 6.12kw
Sieve Dimensions 1140×924mm 1140×924mm
Crusher Model CI1213M CI1315M
Inlet Dimensions 1320×900mm 1320×900mm
Max.Feeding Size 500mm 500mm
The Feeder at the Bottom Hopper Volume 1m³ 1.5m³
Power 5.2kw 5.2kw
Unearthed Belt Conveyors Dimensions(Width×Length) 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm
Main Belt Conveyor Dimensions(Width×Length) 1000×9900mm 1200×11000mm
Dumping Height 3500mm 3500mm
Secondary Screen Power ○ ○
Sieve Dimensions ○ 1500×4200
Belt Conveyors at the Bottom Dimensions(Width×Length) ○ ○
Dumping Height ○ 3000mm
Transferring Belt Conveyor Dimensions(Width×Length) ○ ○
Dumping Height ○ 1400mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) ○ ○
Dumping Height ○ 4500mm
Iron Remover Model RCYQ-10 RCYQ-10
Diesel Engine Power 106kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 304kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model WT1315

Model WT1315
Dimensions of Transmission Devices Length 17000mm
Width 3200mm
Height 3800mm
Weight 65t
Feeder Hopper Volume 5m³
Loading Height 4000mm
Primary Screen Power 6.12kw
Sieve Dimensions 1240×930mm
Crusher Model CI1315M
Inlet Dimensions 1540×900mm
Max.Feeding Size 600mm
The Feeder at the Bottom Hopper Volume 1.5m³
Power 6.12kw
Unearthed Belt Conveyors Dimensions(Width×Length) 650×3500mm
Dumping Height 2400mm
Main Belt Conveyor Dimensions(Width×Length) 1200×11000mm
Dumping Height 3800mm
Secondary Screen Power ○
Sieve Dimensions ○
Belt Conveyors at the Bottom Dimensions(Width×Length) ○
Dumping Height ○
Transferring Belt Conveyor Dimensions(Width×Length) ○
Dumping Height ○
Belt Conveyors for Discharging Material Dimensions(Width×Length) ○
Dumping Height ○
Iron Remover Model RCYQ-10
Diesel Engine Power 132kw
Manufacturer Carter Perkins
The Main Machine Power 366kw
Ways of Controlling Wired/Wireless (optional)

Model WT160SC and WT250SC

Model WT160SC WT250SC
Dimensions of Transmission Devices Length 16800mm 19500mm
Width 3500mm 3600mm
Height 3700mm 3800mm
Weight 50t 60t
Belt Conveyor Hopper Volume 3m³ 3m³
Loading Height 2600m 2600m
Loading Width 1900mm 1900mm
Dimensions(Width×Length) 1000×6300mm 1000×6300mm
Crusher Model SC160 HP400
Inlet Dimensions 75-360mm 75-450mm
Max.Feeding Size 360mm 450mm
Min. Discharging Size 8-25mm 8-35mm
Main Belt Conveyor Dimensions(Width×Length) 1000×9000mm 1000×11000mm
Dumping Height 3100mm 3490mm
Secondary Screen Dumping Height 4200mm 4400mm
Model HX1536 HX1536
Sieve Dimensions 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions(Width×Length) 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3020mm
Belt Conveyors to the Sieve Dimensions(Width×Length) 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) 650×10000mm 650×10000mm
Dumping Height 4200mm 4200mm
Diesel Engine Power 96kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 207.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

Model WT300HPM and WT400HPM

Model WT300HPM WT400HPM
Dimensions of Transmission Devices Length 19000mm 19500mm
Width 3900mm 3900mm
Height 3800mm 3800mm
Weight 55t 65t
Belt Conveyor Hopper Volume 3m³ 3m³
Loading Height 2600m 2800m
Loading Width 1900mm 1900mm
Dimensions(Width×Length) 1000×6300mm 1200×6500mm
Crusher Model HP300 HP400
Inlet Dimensions 60-200mm 68-280mm
Max.Feeding Size 200mm 280mm
Min. Discharging Size 8-45mm 8-51mm
Main Belt Conveyor Dimensions(Width×Length) 1000×10000mm 1000×11000mm
Dumping Height 3490mm 3690mm
Secondary Screen Dumping Height 4400mm 4400mm
Model HX1536 HX1536
Sieve Dimensions 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions(Width×Length) 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3300mm
Belt Conveyors to the Sieve Dimensions(Width×Length) 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) 650×11000mm 650×11000mm
Dumping Height 4400mm 4400mm
Diesel Engine Power 106kw 132kw
Manufacturer Carter Perkins Carter Perkins
The Main Machine Power 267.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional)

For customization, please contact us.

more

Wheeled mobile Jaw Crusher Station

Wheeled mobile Jaw Crusher Station
more

Wheeled Mobile Cone Crusher Station

Wheeled Mobile Cone Crusher Station
more

Mobile Crushing Station

Mobile Crushing Station
more

Wheeled Mobile Impact Crusher Station

Wheeled Mobile Impact Crusher Station
Applied materials:

cement, limestone, granite, basalt, aggregate, calcite, quartz, concrete, dolomite, bluestone, iron ore, coal gangue, construction waste, ferrosilicon, etc.

Finished product specification: 5-225 (unit: mm) Processing materials:
5-10mm
5-10mm
10-20mm
10-20mm
20-35mm
20-35mm
60-225mm
60-225mm

About Us

Henan Hongxing Mining Machinery Co.,Ltd.(HXJQ) covers an area of 350,000 square menters which includes 260,000 square menters of heavey duty industrial workshops.

covers an area of 350,000 square menters .

heavy duty industrial workshops.

which includes 260,000 square menters.

MORE +

HongxingMachinery

Is a manufacturer of high-end mining machinery in Asia.

350000 + workshop 600 + R&D team 40 + R&D experience
Hongxing Machinery
china
48-hour idling test machine before leaving the factory. You can take the materials to the factory test machine. We will customize the solution according to your needs.
deliver goods All major ports can deliver goods

Two weeks of delivery, custom cycle, please consult.

The International standard for some parts, if there are no relevant accessories in the local area, we provide engineer after-sales service.

After-sales service

After-sales service
Any Help?

If you want to get a quotation or more product details, please leave us a message.

Chat Online
Chat Online
Locations
Office Add：No.8, Tanxiang Road, Kexue Revenue, High & New Technology Industries Development Zone of Zhengzhou, China
E-mail：info@hxjq.com
QUICK LINKS
Mobile Crusher
Jaw Crusher
Stone Crusher
Online Chat
Chat Online Leave Message
Hi,may I help you with products, price, etc?
top
