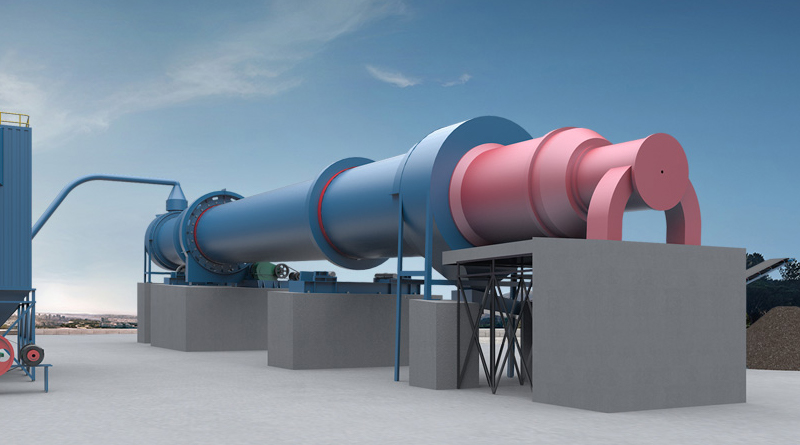

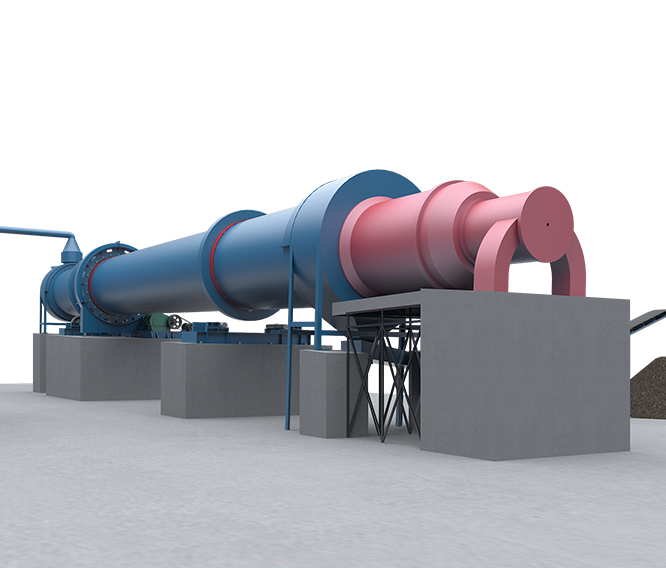

Biomass Dryer

Product Introduction

The biomass dryer can quickly dry the wet material with a moisture of 60% to a dried product with moisture less than 12%. It can be used for drying wood chips, sawdust, bark, straw, alfalfa hay, husk, sugarcane bagasse, cassava residues, poultry manure, etc. And the final product can be applied in boiler combustion, gasification and power generation, animal feed, fertilizer, etc. We offer the whole biomass drying system including a heating machine, conveyor, feeding part, cylinder dryer, discharging part, and dust collector, etc.

Biomass Dryer Features:

High thermal efficiency : The thermal efficiency is 80% to 90%. The new internal structure strengthens heat conduction of dispersed materials, and eliminates the sticking phenomenon of the inner wall of the cylinder.
Stable drying quality : Since the heating mode is easy to control, the temperature inside the cylinder and the heat transfer rate of the partition wall can be kept relatively stable.
Long parts life, not easy to wear : The cylinder of the dryer is made of steel material, which has the characteristics of high hardness and high toughness.
Simple operation, environmental protection and energy saving : The dryer system has good sealing performance, and is equipped with a complete dust removal device, with little dust spillage and a good operating environment.

Technical data

Rotary dryer
Indirect heat transfer dryer

Spec./m	Shell Cubage	Capacity(t/h)	Installation(%)	Highest Inlet Air Temperature	Main Motor
Φ 1.2×8	9	1.9-2.4	3-5	700-800	7.5
Φ1.2 ×10	11.3	2.4-3	3-5	700-800	7.5
Φ 1.5×12	21.2	4.5-5.7	3-5	700-800	15
Φ 1.5×14	24.7	5.3-6.6	3-5	700-800	15
Φ1.5×15	26.5	5.7-7.1	3-5	700-800	15
Φ 1.8×12	30.5	6.5-8.1	3-5	700-800	18.5
Φ 1.8×14	35.6	7.6-9.5	3-5	700-800	18.5
Φ 2.2×12	45.6	9.7-12.2	3-5	700-800	22
Φ 2.2×14	53.2	11.4-14.2	3-5	700-800	22
Φ 2.2×16	60.8	13-16.2	3-5	700-800	22
Φ 2.4×14	63.3	13.5-16.9	3-5	700-800	37
Φ 2.4×18	81.4	17.4-21.7	3-5	700-800	37
Φ 2.4×20	90.4	19.3-24.1	3-5	700-800	45
Φ 2.4×22	99.5	21.2-26.5	3-5	700-800	45
Φ 2.6×24	127.4	27.2-34	3-5	700-800	55
Φ 3×20	141.3	30.1-37.7	3-5	700-800	75
Φ 3×25	176.6	37.7-47.1	3-5	700-800	75
Φ 3.2×25	201	42.9-53.6	3-5	700-800	90
Φ 3.6×28	285	60.8-76	3-5	700-800	160

Shell diameter × shell Length	Inside diameter of outer shell （mm）	Inside diameter of inner shell （mm）	Shell Length （m）	Shell cubage （m³）	Shell obliquity	Lifting blade form	Highest inlet air temperature （℃）	Dimensions （m）
Φ1.5×15m	1500	500	15	20.27	3-5%	Lifting form	850	16.2×2.7×2.7
Φ1.5×17m			17	22.97				18.2×2.7×2.7
Φ1.5×19m			19	25.68				20.0×2.9×2.9
Φ1.8×21m	1800	650	21	35.91	3-5%	Lifting form	850	22.5×2.7×2.7
Φ1.8×23m			23	39.33				24.5×2.9×2.9
Φ1.8×25m			25	42.75				26.5×2.9×2.9
Φ2.2×21m	2200	800	21	58.10	3-5%	Lifting form	850	----
Φ2.2×23m			23	63.61
Φ2.2×25m			25	69.15

Rotary dryer
Indirect heat transfer dryer

Spec./m	Capacity(t/h)	Highest Inlet Air Temperature
Φ 1.2×8	1.9-2.4	700-800
Φ1.2 ×10	2.4-3	700-800
Φ 1.5×12	4.5-5.7	700-800
Φ 1.5×14	5.3-6.6	700-800
Φ1.5×15	5.7-7.1	700-800
Φ 1.8×12	6.5-8.1	700-800
Φ 1.8×14	7.6-9.5	700-800
Φ 2.2×12	9.7-12.2	700-800
Φ 2.2×14	11.4-14.2	700-800
Φ 2.2×16	13-16.2	700-800
Φ 2.4×14	13.5-16.9	700-800
Φ 2.4×18	17.4-21.7	700-800
Φ 2.4×20	19.3-24.1	700-800
Φ 2.4×22	21.2-26.5	700-800
Φ 2.6×24	27.2-34	700-800
Φ 3×20	30.1-37.7	700-800
Φ 3×25	37.7-47.1	700-800
Φ 3.2×25	42.9-53.6	700-800
Φ 3.6×28	60.8-76	700-800

Shell diameter × shell Length	Inside diameter of outer shell (mm)	Inside diameter of inner shell (mm)	Shell cubage (m³)
Φ1.5×15m	1500	500	20.27
Φ1.5×17m			22.97
Φ1.5×19m			25.68
Φ1.8×21m	1800	650	35.91
Φ1.8×23m			39.33
Φ1.8×25m			42.75
Φ2.2×21m	2200	800	58.10
Φ2.2×23m			63.61
Φ2.2×25m			69.15

For customization, please contact us.
