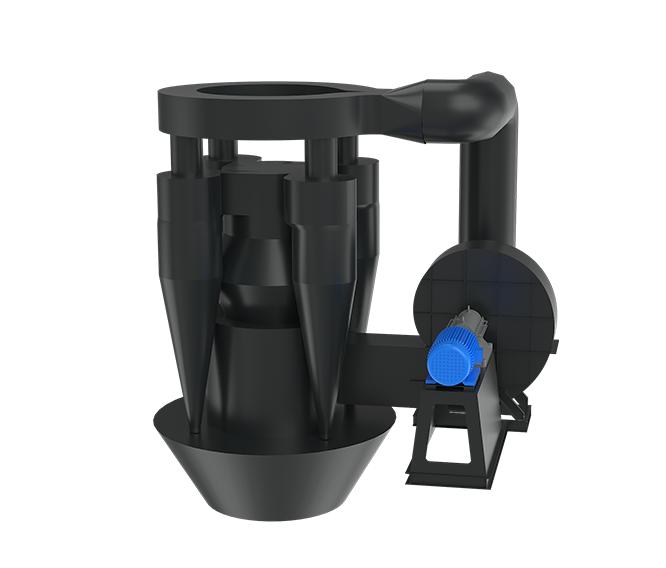

The high-efficiency powder separator adopts the organic combination of gravity centrifugation and cyclone vortex multi-classification force field to achieve high classification accuracy.It is equipped with a cage-shaped rotor, which can help the accumulated particles to rise again,increase the classification capacity,and effectively reduce the fine powder content in the coarse powder. Equipped with a speed-regulating motor to adjust the spindle speed,the fineness is easy to adjust and has high sensitivity.It is widely used in sand and gravel production lines and grinding production lines.
High efficiency of powder selection
Easy to install
Fineness is adjustable
| Product Specification (mm) |
Rev Of Main Shaft (rpm) |
Capacity Of Separator (t/h) |
Capacity Of Powder From VSI |
Fineness | Main Shaft Motor |
Blower | ||||
| Power (kw) |
Adjustable Range (rpm) |
Rev. (rpm) |
Pressure (pa) |
Wind Content (m³/t) |
Power Of (kw) |
|||||
| HX500 | 190-380 | 21-60 | 2-8 | 小于80μm (100-1000目) |
11 | 125-1250 | 1680 | 2494 | 29668 | 30 |
| HX600 | 150-350 | 40-100 | 6-15 | 15 | 125-1250 | 1200 | 2400 | 34996 | 37 | |
| HX700 | 130-320 | 70-120 | 11-20 | 18.5 | 132-1320 | 1000 | 2390 | 64118 | 55 | |
| HX800 | 120-280 | 85-150 | 14-28 | 30 | 132-1320 | 980 | 2546 | 86331 | 90 | |
| HX900 | 120-280 | 105-180 | 20-35 | 55 | 132-1320 | 800 | 2456 | 99493 | 110 | |
| HX1000 | 120-280 | 126-250 | 25-50 | 75 | 132-1320 | 900 | 2684 | 136430 | 132 | |
| Product Specification (mm) |
Capacity Of Separator (t/h) |
Capacity Of Powder From VSI |
| HX500 | 21-60 | 2-8 |
| HX600 | 40-100 | 6-15 |
| HX700 | 70-120 | 11-20 |
| HX800 | 85-150 | 14-28 |
| HX900 | 105-180 | 20-35 |
| HX1000 | 126-250 | 25-50 |
For customization, please contact us.
