“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

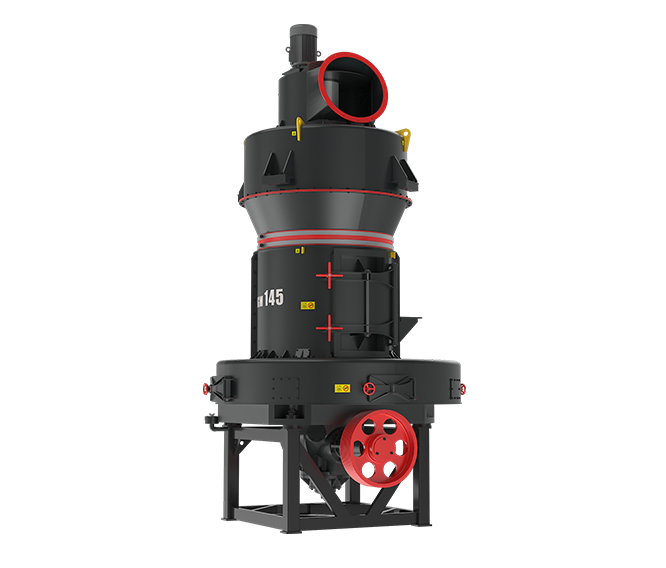

HGM Series German Raymond Mill is a new product with high technical level developed by the research institute of Hongxing Group on the basis of more than 40 years of experience in the research and development of grinding equipment, according to the actual situation of users using grinding equipment for many years, in response to the needs of the development of the milling industry,and absorbing the cutting-edge domestic and foreign mature milling technology and concepts.
1.Split modular structure,convenient for maintenance and repair;
2.Transmission form of coupling reducer,compact structure;
3.The resistance-free volute and the arc-shaped air duct reduce the wind resistance at the air inlet of the entire closed-circuit circulation system.
4.Split grinding roller and special wear-resistant blade head struc- ture,reducing the replacement cost of wear parts.
| Model | Feeding size (mm) |
Finished product size (mm) |
Capacity (t/h) |
Grinding ring diameter (mm) |
Number of grinding roller | Power of main machine (kW) |
Blower power (kW) |
Analyzer power (kW) |
Transmission type |
| HGM88 | <25 | 0.25-0.015 | 0.4-5 | 908 | 3 | 22 | 22 | 5.5 | V-belt transmission |
| HGM95 | <25 | 0.25-0.015 | 0.6-7 | 1006 | 3 | 37 | 37 | 7.5 | |
| HGM120 | <25 | 0.25-0.015 | 1.2-15 | 1280 | 3 | 55 | 75 | 15 | Reducer transmission |
| HGM130 | <25 | 0.25-0.038 | 1.6-21 | 1400 | 4 | 75 | 90 | 18.5 | |
| HGM138 | <25 | 0.25-0.038 | 2-25 | 1510 | 4 | 90 | 110 | 22 | |
| HGM160 | <30 | 0.25-0.038 | 2.7-28 | 1770 | 5 | 132 | 160 | 22/30 | |
| HGM175 | <35 | 0.25-0.038 | 3-35 | 1900 | 5 | 185 | 200 | 30 | |
| HGM190 | <40 | 0.25-0.038 | 5-40 | 2040 | 4 | 250/280 | 250/280 | 45/55 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Capacity (t/h) |
Power of main machine (kW) |
| HGM88 | 0.4-5 | 22 |
| HGM95 | 0.6-7 | 37 |
| HGM120 | 1.2-15 | 55 |
| HGM130 | 1.6-21 | 75 |
| HGM138 | 2-25 | 90 |
| HGM160 | 2.7-28 | 132 |
| HGM175 | 3-35 | 185 |
| HGM190 | 5-40 | 250/280 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
For customization, please contact us.
Henan Hongxing Mining Machinery Co.,Ltd.(HXJQ) covers an area of 350,000 square menters which includes 260,000 square menters of heavey duty industrial workshops.
covers an area of 350,000 square menters .
heavy duty industrial workshops.
which includes 260,000 square menters.
Is a manufacturer of high-end mining machinery in Asia.
All major ports can deliver goods
Two weeks of delivery, custom cycle, please consult.
The International standard for some parts, if there are no relevant accessories in the local area, we provide engineer after-sales service.
