“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

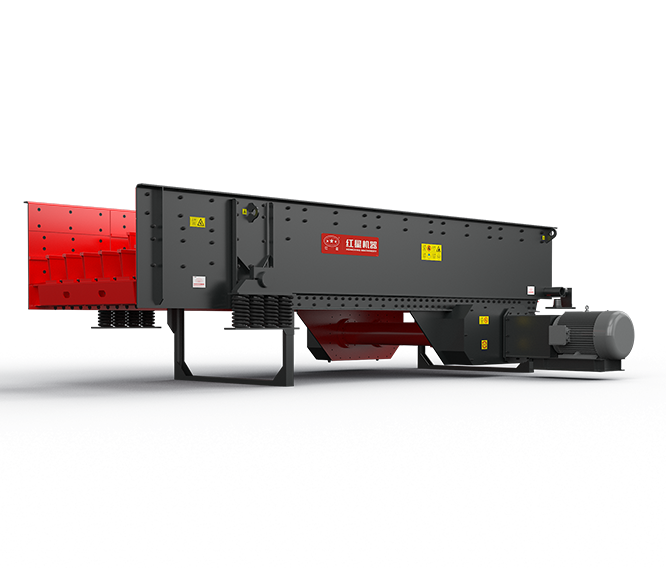

HSF Series Heavy grizzly Vibrating Feeder-Designed according to heavy duty working conditions,suitable for feeding large and medium-sized primary crushing equipment in stone,building materials and metallurgical mines.Compact structure,strong impact resistance,external eccentric block design makes the amplitude adjustment of the feeder convenient and quick, independent wear-resistant bar makes the bar gap can be adjusted at will,maximize the granularity of the material entering the crusher, improve the crusher productivity,reduce energy consumption.
| Model | Trough Size (mm) |
Lendth Of The Bar (mm) |
Maximum Feeding Size (mm) |
Application | Maximum Processing Capacity (t/h) |
Power (kw) |
| HSF1040 | 1000×4000 | 1×1200 | 700 | Fixed/Mobile | 400-840 | 15 |
| HSF1245 | 1200×4500 | 1×1200 | 800 | Fixed/Mobile | 500-1080 | 22 |
| HSF1262(S) | 1200×6200 | 2×900 | 800 | Fixed | 500-1080 | 22 |
| HSF1345 | 1300×4500 | 1×1200 | 900 | Fixed/Mobile | 750-1150 | 22 |
| HSF1362(S) | 1300×6200 | 2×900 | 900 | Fixed | 750-1150 | 30 |
| HSF1562(S) | 1500×6200 | 2×900 | 1000 | Fixed | 800-1320 | 30 |
| HSF1862(S) | 1800×6200 | 2×900 | 1200 | Fixed | 1040-1560 | 37 |
| HSF2162 | 2100×6200 | 2×900 | 1500 | Fixed/Mobile | 1200-1860 | 37 |
| HSF2462 | 2400×6200 | 2×900 | 1500 | Fixed | 1360-2040 | 2×30 |
the types with （S） means you can choose additional sieve layer
| Model | Maximum Feeding Size (mm) |
Maximum Processing Capacity (t/h) |
| HSF1040 | 700 | 400-840 |
| HSF1245 | 800 | 500-1080 |
| HSF1262(S) | 800 | 500-1080 |
| HSF1345 | 900 | 750-1150 |
| HSF1362(S) | 900 | 750-1150 |
| HSF1562(S) | 1000 | 800-1320 |
| HSF1862(S) | 1200 | 1040-1560 |
| HSF2162 | 1500 | 1200-1860 |
| HSF2462 | 1500 | 1360-2040 |
the types with （S） means you can choose additional sieve layer
For customization, please contact us.
