“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

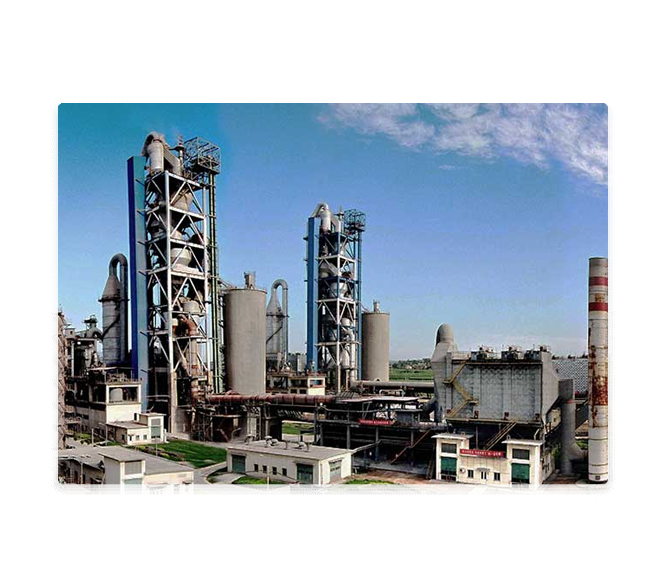

The new dry process cement technology is based on suspension preheating and pre-decomposition technology and equipment,and is based on advanced environmental protection,thermal engineering,grinding,homogenization,storage and transportation, online testing,information technology and other technical equipment.Save resources and energy,make full use of waste materials and waste residues,promote circular economy,and achieve modern cement production methods that harmonize man and nature.
| Product specifications(m) | Kiln dimensions | Capacity(t/d) | Rotation speed(r/min) | Motor power(kw) | Total weight(t) | Note | ||
| Diameter(m) | Length(m) | Obliquity(%) | ||||||
| Φ2.5×40 | 2.5 | 40 | 3.5 | 180 | 0.44-2.44 | 55 | 149.61 | Kiln with shaft cyclone preheater |
| Φ2.5×50 | 2.5 | 50 | 3 | 200 | 0.62-1.86 | 55 | 187.37 | ---- |
| Φ2.5×54 | 2.5 | 54 | 3.5 | 204 | 0.48-1.45 | 55 | 196.29 | ---- |
| Φ2.7×42 | 2.7 | 42 | 3.5 | 320 | 0.10-1.52 | 55 | 198.5 | ---- |
| Φ2.8×44 | 2.8 | 44 | 3.5 | 400 | 0.437-2.18 | 55 | 201.58 | Outside disassemble kiln |
| Φ3.0×45 | 3 | 45 | 3.5 | 500 | 0.5-2.47 | 75 | 210.94 | ---- |
| Φ3.0×48 | 3 | 48 | 3.5 | 700 | 0.6-3.48 | 100 | 237 | Outside disassemble kiln |
| Φ3.0×60 | 3 | 60 | 3.5 | 300 | 0.3-2 | 100 | 310 | Alumyte-alumina forge kiln |
| Φ3.2×50 | 3.2 | 50 | 4 | 1000 | 0.6-3 | 125 | 278 | Outside disassemble kiln |
| Φ3.3×52 | 3.3 | 52 | 3.5 | 1300 | 0.266-2.66 | 125 | 283 | Kiln with preheater precalcine |
| Φ3.5×54 | 3.5 | 54 | 3.5 | 1500 | 0.55-3.4 | 220 | 363 | Kiln with preheater precalcine |
| Φ3.6×70 | 3.6 | 70 | 3.5 | 1800 | 0.25-1.25 | 125 | 419 | Generating kiln for using ofterheat |
| Φ4.0×56 | 4 | 56 | 4 | 2300 | 0.41-4.07 | 315 | 456 | Kiln with preheater precalcine |
| Φ4.0×60 | 4 | 60 | 3.5 | 2500 | 0.396-3.96 | 315 | 510 | Kiln with preheater precalcine |
| Φ4.2×60 | 4.2 | 60 | 4 | 2750 | 0.4-3.98 | 375 | 633 | Kiln with preheater precalcine |
| Φ4.3×60 | 4.3 | 60 | 3.5 | 3200 | 0.396-3.96 | 375 | 583 | Kiln with preheater precalcine |
| Φ4.5×66 | 4.5 | 66 | 3.5 | 4000 | 0.41-4.1 | 560 | 710.4 | Kiln with preheater precalcine |
| Φ4.7×74 | 4.7 | 74 | 4 | 4500 | 0.35-4 | 630 | 849 | Kiln with preheater precalcine |
| Φ4.8×74 | 4.8 | 74 | 4 | 5000 | 0.396-3.96 | 630 | 899 | Kiln with preheater precalcine |
| Φ5.0×74 | 5 | 74 | 4 | 6000 | 0.35-4 | 710 | 944 | Kiln with preheater precalcine |
| Φ5.6×87 | 5.6 | 87 | 4 | 8000 | Max4.23 | 800 | 1265 | Kiln with preheater precalcine |
| Φ6.0×95 | 6 | 95 | 4 | 10000 | Max5 | 950×2 | 1659 | Kiln with preheater precalcine |
| Product specifications(m) |
Capacity (t/d) |
Rotation speed(r/min) |
| Φ2.5×40 | 180 | 0.44-2.44 |
| Φ2.5×50 | 200 | 0.62-1.86 |
| Φ2.5×54 | 204 | 0.48-1.45 |
| Φ2.7×42 | 320 | 0.10-1.52 |
| Φ2.8×44 | 400 | 0.437-2.18 |
| Φ3.0×45 | 500 | 0.5-2.47 |
| Φ3.0×48 | 700 | 0.6-3.48 |
| Φ3.0×60 | 300 | 0.3-2 |
| Φ3.2×50 | 1000 | 0.6-3 |
| Φ3.3×52 | 1300 | 0.266-2.66 |
| Φ3.5×54 | 1500 | 0.55-3.4 |
| Φ3.6×70 | 1800 | 0.25-1.25 |
| Φ4.0×56 | 2300 | 0.41-4.07 |
| Φ4.0×60 | 2500 | 0.396-3.96 |
| Φ4.2×60 | 2750 | 0.4-3.98 |
| Φ4.3×60 | 3200 | 0.396-3.96 |
| Φ4.5×66 | 4000 | 0.41-4.1 |
| Φ4.7×74 | 4500 | 0.35-4 |
| Φ4.8×74 | 5000 | 0.396-3.96 |
| Φ5.0×74 | 6000 | 0.35-4 |
| Φ5.6×87 | 8000 | Max4.23 |
| Φ6.0×95 | 10000 | Max5 |
For customization, please contact us.
