“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

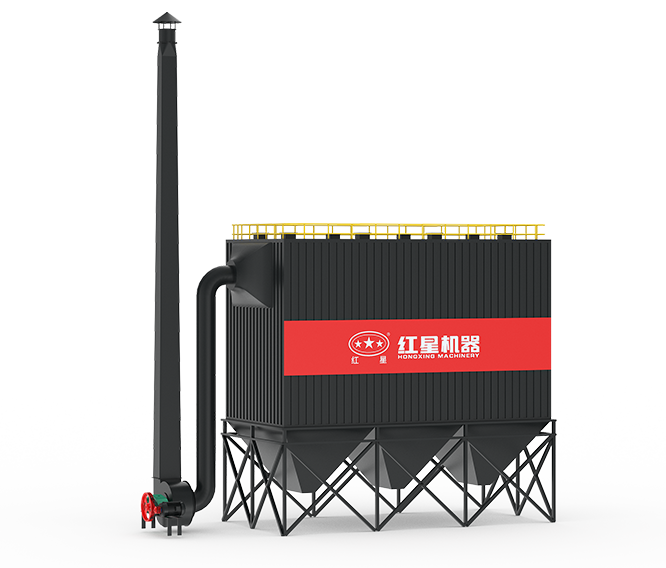

PPCS series air box pulse bag dust collector is widely used in building materials,cement,metallurgy,machinery,chemical and refractory materials industries,especially suitable for crushing,packaging,warehouse roof,clinker cooler and various mills of cement plants.Dust collection system (or dust removal system) has strong applicability.
offline ash cleaning,wide application range,large processing air volume,and high dust collection efficiency.
| Model | Air volume (m³/h) | Filtration velocity (m/min) | Total filtra tion area (m²) | Net filtration area (m²) |
| PPCS 32-3 | 6900 | 1.2-2.0 | 93 | 62 |
| PPCS 32-4 | 8930 | 124 | 93 | |
| PPCS 32-5 | 11160 | 155 | 124 | |
| PPCS 32-6 | 13390 | 186 | 155 | |
| PPCS 64-4 | 17300 | 248 | 186 | |
| PPCS 64-5 | 22300 | 310 | 248 | |
| PPCS 64-6 | 26700 | 372 | 310 | |
| PPCS 64-7 | 31200 | 434 | 372 | |
| PPCS 64-8 | 35700 | 496 | 434 | |
| PPCS 96-4 | 26800 | 372 | 279 | |
| PPCS 96-5 | 33400 | 465 | 372 | |
| PPCS 96-6 | 40100 | 557 | 465 | |
| PPCS 96-7 | 46800 | 650 | 557 | |
| PPCS 96-8 | 53510 | 744 | 650 | |
| PPCS 96-9 | 60100 | 838 | 744 | |
| PPCS96-2X5 | 66900 | 929 | 936 | |
| PPCS96-2X6 | 80700 | 1121 | 1028 | |
| PPCS96-2X7 | 94100 | 1308 | 1215 | |
| PPCS96-2X8 | 107600 | 1494 | 1401 | |
| PPCS96-2X9 | 121000 | 1681 | 1588 | |
| PPCS96-2X10 | 134500 | 1868 | 1775 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Air volume (m³/h) |
Filtration velocity (m/min) |
Total filtra tion area (m²) |
Net filtration area (m²) |
| PPCS 32-3 | 6900 | 1.2-2.0 | 93 | 62 |
| PPCS 32-4 | 8930 | 124 | 93 | |
| PPCS 32-5 | 11160 | 155 | 124 | |
| PPCS 32-6 | 13390 | 186 | 155 | |
| PPCS 64-4 | 17300 | 248 | 186 | |
| PPCS 64-5 | 22300 | 310 | 248 | |
| PPCS 64-6 | 26700 | 372 | 310 | |
| PPCS 64-7 | 31200 | 434 | 372 | |
| PPCS 64-8 | 35700 | 496 | 434 | |
| PPCS 96-4 | 26800 | 372 | 279 | |
| PPCS 96-5 | 33400 | 465 | 372 | |
| PPCS 96-6 | 40100 | 557 | 465 | |
| PPCS 96-7 | 46800 | 650 | 557 | |
| PPCS 96-8 | 53510 | 744 | 650 | |
| PPCS 96-9 | 60100 | 838 | 744 | |
| PPCS96-2X5 | 66900 | 929 | 936 | |
| PPCS96-2X6 | 80700 | 1121 | 1028 | |
| PPCS96-2X7 | 94100 | 1308 | 1215 | |
| PPCS96-2X8 | 107600 | 1494 | 1401 | |
| PPCS96-2X9 | 121000 | 1681 | 1588 | |
| PPCS96-2X10 | 134500 | 1868 | 1775 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
For customization, please contact us.
Henan Hongxing Mining Machinery Co.,Ltd.(HXJQ) covers an area of 350,000 square menters which includes 260,000 square menters of heavey duty industrial workshops.
covers an area of 350,000 square menters .
heavy duty industrial workshops.
which includes 260,000 square menters.
Is a manufacturer of high-end mining machinery in Asia.
All major ports can deliver goods
Two weeks of delivery, custom cycle, please consult.
The International standard for some parts, if there are no relevant accessories in the local area, we provide engineer after-sales service.
