“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

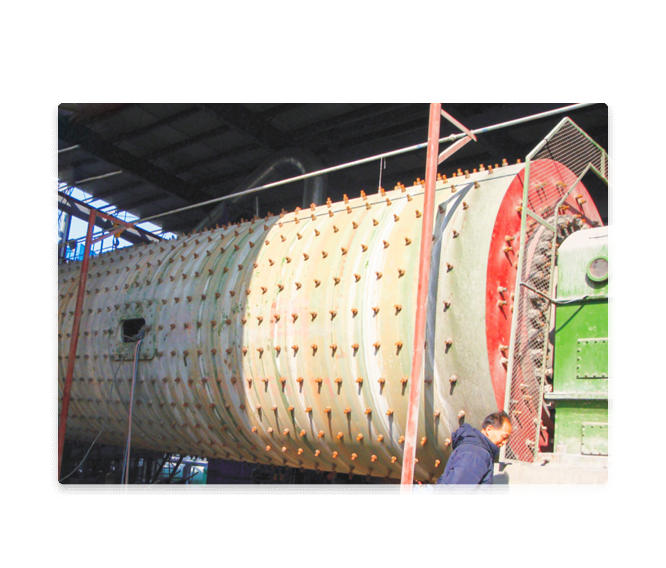

Raw material mills are widely used in the building materials,metallurgy,electric power and chemical industries for grinding(drying and grinding)cement raw materials and other materials.
| (Dia.×Length) (m) |
Speed (r/min) |
Feeding Size (mm) |
Griding Media Loading (t) |
Main Motor (KW) |
Main Reducer |
| Φ2.2×7.0 | 21.7 | <25 | 35 | 380 | ZD70 |
| Φ2.2×7.5 | 21.7 | <25 | 35 | 380 | ZD70 |
| Φ2.2×8.0 | 21.5 | <25 | 36 | 480 | ZD70 |
| Φ2.2×9.0 | 21.5 | <25 | 40 | 480 | ZD70 |
| Φ2.4×7.0 | 21.5 | <25 | 36.5 | 480 | ZD70 |
| Φ2.4×8.0 | 21.5 | <25 | 42 | 570 | ZD80 |
| Φ2.4×9.0 | 21.5 | <25 | 55 | 630 | ZD80 |
| Φ2.4×10 | 20.3 | <25 | 55 | 630 | ZD80 |
| Φ2.6×8.0 | 19.7 | <25 | 51 | 630 | MBY630 |
| Φ2.6×9.0 | 19.7 | <20 | 58 | 710 | MBY630 |
| Φ2.6×10 | 19.7 | <20 | 64 | 800 | MBY710 |
| Φ3.0×9.0 | 18.2 | <20 | 78 | 1000 | MBY800 |
| Φ3.0×11 | 18.2 | <20 | 95 | 1250 | MBY800 |
| Φ3.2×10 | 17.8 | <25 | 100 | 1400 | MBY900 |
| Φ3.2×11 | 17.8 | <25 | 110 | 1400 | MBY900 |
| Φ3.4×7.5 | 16.9 | <20 | 80 | 1000 | MBY800 |
| Φ3.4×7.5+1.8 | 16.9 | <20 | 70 | 1250 | MBY800 |
| Φ3.5×10 | 16.8 | <20 | 140 | 1600 | MBY1000 |
| Φ3.8×7.5 | 16.5 | <15 | 130 | 1600 | MBY1000 |
| Φ3.8×8.5 | 16.5 | <15 | 160 | 1800 | MBY1000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| (Dia.×Length) (m) |
Speed (r/min) |
Feeding Size (mm) |
Griding Media Loading (t) |
| Φ2.2×7.0 | 21.7 | <25 | 35 |
| Φ2.2×7.5 | 21.7 | <25 | 35 |
| Φ2.2×8.0 | 21.5 | <25 | 36 |
| Φ2.2×9.0 | 21.5 | <25 | 40 |
| Φ2.4×7.0 | 21.5 | <25 | 36.5 |
| Φ2.4×8.0 | 21.5 | <25 | 42 |
| Φ2.4×9.0 | 21.5 | <25 | 55 |
| Φ2.4×10 | 20.3 | <25 | 55 |
| Φ2.6×8.0 | 19.7 | <25 | 51 |
| Φ2.6×9.0 | 19.7 | <20 | 58 |
| Φ2.6×10 | 19.7 | <20 | 64 |
| Φ3.0×9.0 | 18.2 | <20 | 78 |
| Φ3.0×11 | 18.2 | <20 | 95 |
| Φ3.2×10 | 17.8 | <25 | 100 |
| Φ3.2×11 | 17.8 | <25 | 110 |
| Φ3.4×7.5 | 16.9 | <20 | 80 |
| Φ3.4×7.5+1.8 | 16.9 | <20 | 70 |
| Φ3.5×10 | 16.8 | <20 | 140 |
| Φ3.8×7.5 | 16.5 | <15 | 130 |
| Φ3.8×8.5 | 16.5 | <15 | 160 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
For customization, please contact us.
Henan Hongxing Mining Machinery Co.,Ltd.(HXJQ) covers an area of 350,000 square menters which includes 260,000 square menters of heavey duty industrial workshops.
covers an area of 350,000 square menters .
heavy duty industrial workshops.
which includes 260,000 square menters.
Is a manufacturer of high-end mining machinery in Asia.
All major ports can deliver goods
Two weeks of delivery, custom cycle, please consult.
The International standard for some parts, if there are no relevant accessories in the local area, we provide engineer after-sales service.
