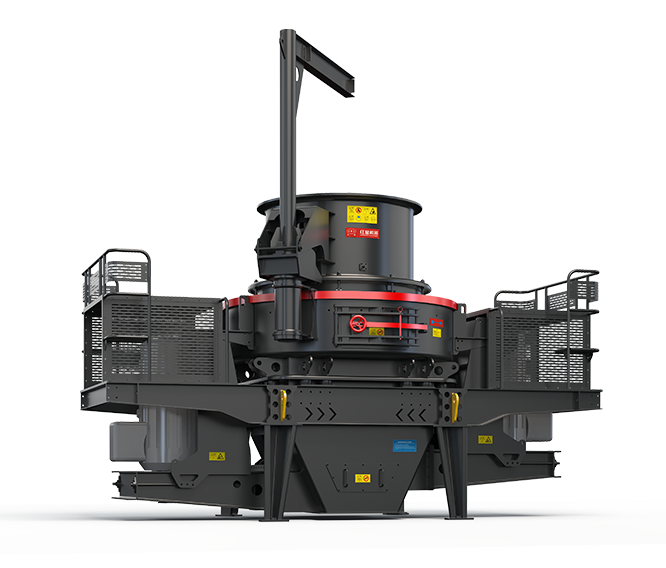

VSI A7 Series Sand Making Machine - Hongxing Mining Machinery

Equipment Introduction

The VSI A7 series impact sand making and shaping machine is a new generation product that draws on advanced technology from similar products both domestically and internationally,and has multiple independent research and development achievements.In the application of large-scale and ultra large machine sand and fine aggregate production lines,it has demonstrated extremely strong performance.

VSI A7 Series Sand Making Machine Features:

Flexible feeding methods,switching between "waterfall feeding+center feeding" and "full center feeding" modes
The large discharge port design effectively prevents material blockage and improves crushing efficiency
Strengthening the crushing chamber,reducing wear costs,and increasing crushing efficiency
The four impeller design improves the crushing efficiency of the equipment,with a large amount of material passing through and a high yield of finished products
Configure hydraulic cover opening and lifting devices to reduce maintenance difficulty

Technical data

VSI A7 Series Sand Making Machine

Model	Hard material	Soft material	Sand Making	Sand Shaping	Motor Power（kw）
Model	Max.Feeding Size （mm）		Throughput（t/h）		Motor Power（kw）
VSIA7 400	<40	<45	260-285	314-345	2×200
VSIA7 500	<45	<50	340-370	405-480	2×250
VSIA7 630	<50	<55	450-488	540-590	2×315
VSIA7 800	<50	<55	556-603	652-703	2×400

Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.

VSI A7 Series Sand Making Machine

Model	Sand Making	Sand Shaping	Motor Power（kw）
Model	Throughput （t/h）		Motor Power（kw）
VSIA7 400	260-285	314-345	2×200
VSIA7 500	340-370	405-480	2×250
VSIA7 630	450-488	540-590	2×315
VSIA7 800	556-603	652-703	2×400

Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.

For customization, please contact us.
