“40 years of senior mining machinery solutions”
Made in China
Two weeks delivery, custom cycle, please consult

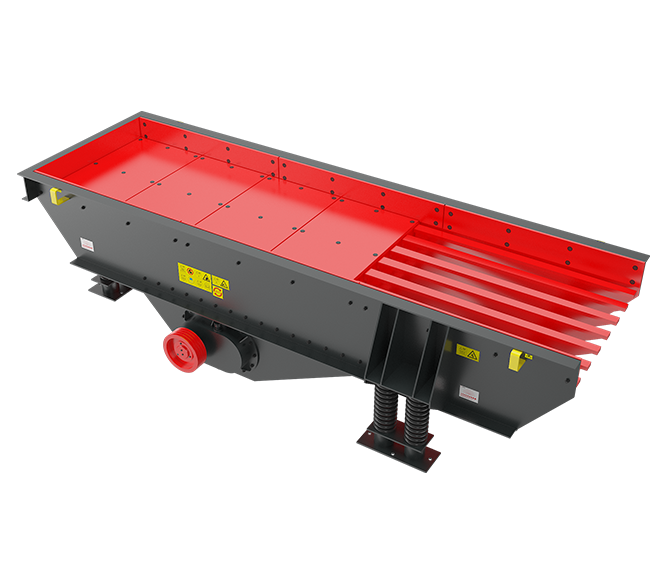

The ZSW vibrating feeder can continuously and evenly feed the crushing machinery and screen the materials.It is widely used in combined crushing and screening equipment in the mineral processing,building materials, silicate and chemical industries.
| Model | Max. Feeding Size (mm) | Processing Capacity (t/h) | Motor Power (kw) | Obliquity of material trough (°) | Trough size (mm) |
| GZD-650×2300 | 300 | 80-100 | 2×1.1 | 10-20 | 650×2300 |
| GZD-750×2500 | 350 | 100-130 | 2×1.1 | 10-20 | 750×2500 |
| GZD-850×3000 | 400 | 120-150 | 2×3 | 10-20 | 850×3000 |
| GZD-1000×3600 | 500 | 150-200 | 2×3.7 | 10-20 | 1000×3600 |
| GZD-1100×3600 | 580 | 240-300 | 2×3.7 | 10-20 | 1100×3600 |
| GZD-1300×3600 | 650 | 450-600 | 2×5.5 | 10-20 | 1300×3600 |
| GZD-1500×3600 | 1050 | 450-1000 | 2×7.5 | 10-20 | 1500×3600 |
| ZSW-380×95 | 500 | 100-280 | 8p 11 | 0-5-10-15 | 3800×960 |
| ZSW-490×110 | 630 | 150-400 | 6p 15 | 0-5-10 | 4900×1100 |
| ZSW-490×130 | 750 | 400-700 | 6p 22 | 0-5-10 | 4900×1300 |
| ZSW-600×130 | 750 | 400-700 | 4p 22 | 0-5-10 | 6000×1300 |
| ZSW-600×150 | 800 | 500-900 | 4p 30 | 0-5-10 | 6000×1500 |
| ZSW-600×180 | 900 | 700-1300 | 4p 37 | 0-5-10 | 6000×1800 |
| ZSW-600×200 | 1200 | 800-1500 | 4p 55 | 0-5-10 | 6000×2000 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
| Model | Max. Feeding Size (mm) | Processing Capacity (t/h) |
| GZD-650×2300 | 300 | 80-100 |
| GZD-750×2500 | 350 | 100-130 |
| GZD-850×3000 | 400 | 120-150 |
| GZD-1000×3600 | 500 | 150-200 |
| GZD-1100×3600 | 580 | 240-300 |
| GZD-1300×3600 | 650 | 450-600 |
| GZD-1500×3600 | 1050 | 450-1000 |
| ZSW-380×95 | 500 | 100-280 |
| ZSW-490×110 | 630 | 150-400 |
| ZSW-490×130 | 750 | 400-700 |
| ZSW-600×130 | 750 | 400-700 |
| ZSW-600×150 | 800 | 500-900 |
| ZSW-600×180 | 900 | 700-1300 |
| ZSW-600×200 | 1200 | 800-1500 |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
For customization, please contact us.
Henan Hongxing Mining Machinery Co.,Ltd.(HXJQ) covers an area of 350,000 square menters which includes 260,000 square menters of heavey duty industrial workshops.
covers an area of 350,000 square menters .
heavy duty industrial workshops.
which includes 260,000 square menters.
Is a manufacturer of high-end mining machinery in Asia.
All major ports can deliver goods
Two weeks of delivery, custom cycle, please consult.
The International standard for some parts, if there are no relevant accessories in the local area, we provide engineer after-sales service.
