Mobile Crusher Plant-Mobile Crushing Plant

Product Introduction

The mobile crusher plant can be combined with various machines, mainly consisting of the vibrating screen, the jaw crusher, cone crusher, impact crusher, VSI crusher, etc. It has different kinds of configurations of machines for different crushing purposes, including the coarse crushing, secondary crushing, and fine crushing. The diversely two-stage crushing station can realize self-loading conveying and screening, which lowers the transport cost of the material and labor consumption.

mobile crusher plant applications and applicable materials

Mobile Crusher Plant Features:

1. Combined optimization design for crushing, screening and conveying.
2. The machine is capable of entering the working mode quickly for flexible parking function.
3. Providing a complete set of optimized solution based on different requirements and various site conditions.
4. High vehicle chassis and small turning radius, which is convenient for ordinary road driving and reduces the transportation cost of materials.

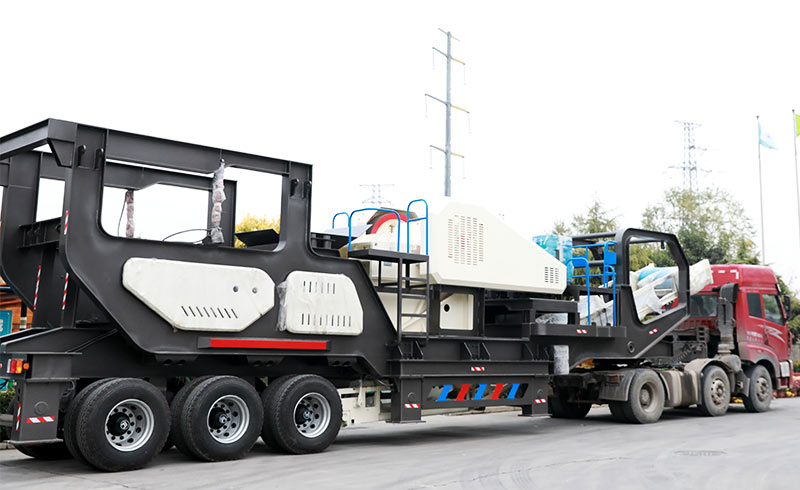

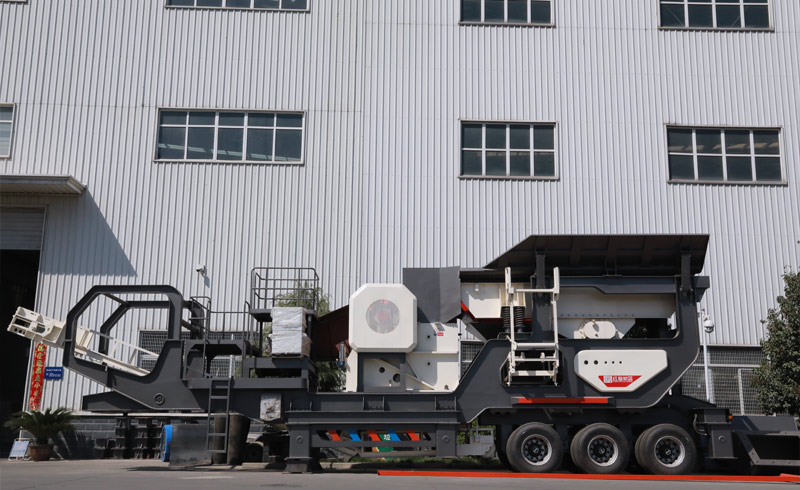

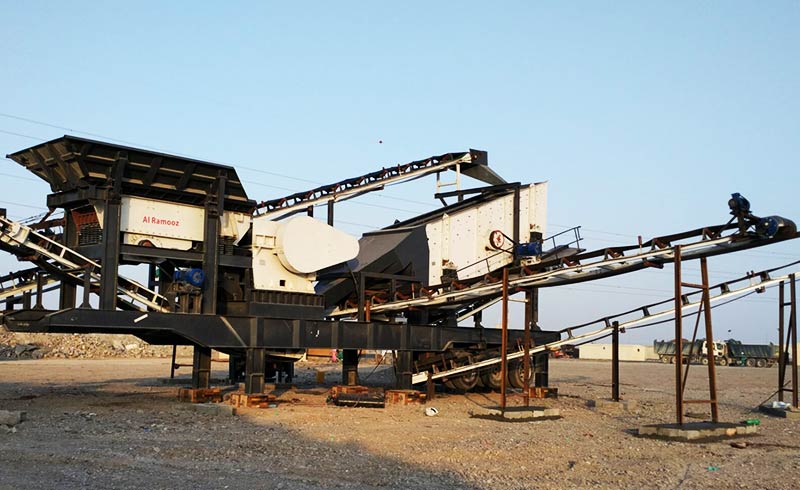

Product
presentation

Learn More About Us

Our goal is to work with you to maximize the profitability of your business. The most cost-effective solution tailored to your needs to help you achieve your business goals.

We have professional engineers who can provide one-on-one professional services. You can leave your contact information and product requirements in the message form below, such as the processed materials, capacity, etc. or you can send us an email: info@hxjq.com. We will contact you as soon as possible.

Technical data

Mobile Crusher Plant

MOBLIE IMPACT CRUSHER TECHNICAL PARAMETERS

Model	HX938F1210	HX938FW1214	HX1149F1315	HX1349HD1110	HX1349HD1315
Transportation Length（mm）	12000	12000	13900	15450	15450
Transportation Width（mm）	2550	2550	2900	2950	2950
Transportation Height（mm）	3900	3900	4450	4500	4500
Maximum Length（mm）	12500	12500	13900	15450	15450
Maximum Width（mm）	3250	3260	3250	3250	3250
Maximum Height（mm）	5100	5200	5200	5200	5200
Weight（t）	39	44	54	62	62
Crusher Model	PF-1210	PF-1214	PF-1315	HD1110	HD1315
The Maximum Feeding Size（mm）	350	350	500	400	700
Production Capacity（t/h）	70-130	100-180	130-250	112	280
Vibrating Feeder	ZSW950×3800	ZSW950×3800	ZSW110×4900	ZSW130×4900	ZSW130×4900
Main Belt Conveyor	B800×8.5M	B800×8.5M	B1000×9.5M	B800×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3.2M	B500×3.2M	B650×4M	B650×4M	B650×4M
Genset(Optional) （kw）	320	320	400	320	440
Iron Separator (Optional)（kw）	RCYD(C)-8	RCYD(C)-8	RCYD(C)-10	RCYD(C)-8	RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model	HX938HD80	HX1149HD98	HX1349HD110	HX1349HD125
Transportation Length(mm)	12600	13500	14500	15200
Transportation Width(mm)	2600	2700	2800	2900
Transportation Height(mm)	3870	4200	4450	4500
Maximum Length(mm)	12500	14000	16100	14700
Maximum Width(mm)	4100	4500	5100	5100
Maximum Height(mm)	4100	4900	5000	5300
Weight(t)	39	57	55	65
Tire Configuration	Dual-axial	Dual-axial	Dual-axial	Dual-axial
Jaw Crusher	HD80	HD98	HD110	HD125
Maximum Feeding Size(mm)	500	550	660	800
Discharge Opening Size(mm)	50-150	75-175	100-200	125-225
Capacity(t/h)	85-275	110-350	215-510	280-650
Vibrating Model	ZSW380×95	ZSW420×110	ZSW490×130	ZSW490×130
Main Belt Conveyor	B800×8.5M	B1000×9.5M	B1000×11M	B1200×11M
Side-opening Belt conveyor(Optional)	B500×3M	B650×3.5M	B650×4M	B650×4M
Genset(Optional) (kw)	200	250	270	400
Iron Separator (Optional)	RCYD(C)-8	RCYD(C)-10	RCYD(C)-10	RCYD(C)-12

Mobile Crusher Plant

MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS

Model	The Maximum Feeding Size （mm）	Production Capacity （t/h）
HX938F1210	350	70-130
HX938FW1214	350	100-180
HX1149F1315	500	130-250
HX1349HD1110	400	112
HX1349HD1315	700	280
