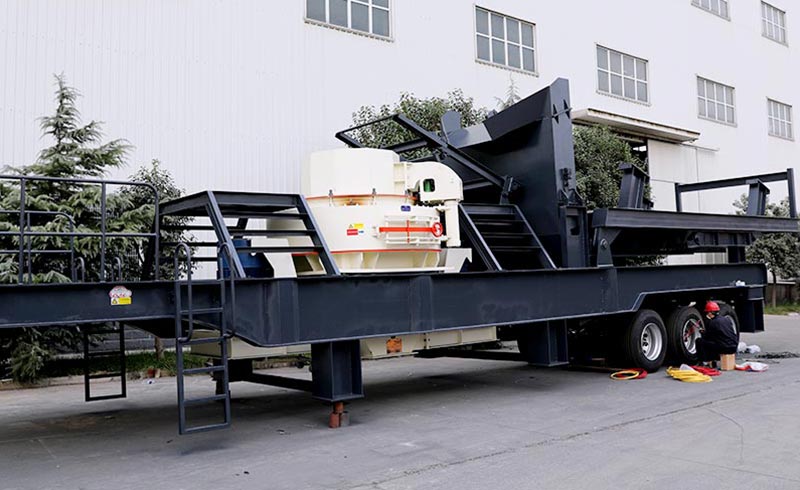

Wheeled Sand Making Machine + Vibrating Screen Mobile Crushing Station

Product Introduction

The Wheeled Sand Making Machine + Vibrating Screen Mobile Crushing Station is composed of vibrating screen, belt conveyor, sand making machine, electric motor and control box. It integrates sand crushing and screening integrated crushing equipment, eliminating crushing site, environment, and basic configuration. The obstacles of customer crushing operations reduce the cumbersome process and working hours of infrastructure installation and provide customers with convenient, efficient and low-cost crushing equipment.

mobile crushing screening plant applications and applicable materials

Wheeled Sand Making Machine + Vibrating Screen Mobile Crushing Station Features:

1. Supporting the installation of motor and control box
2. Flexible and flexible, it eliminates the obstacles caused by broken ground, environment and complicated basic configuration.
3. Reduce material transportation costs
4. Traction steering shaft for easy road transport
5. On-board installation support, equipment installation on site is fast and convenient

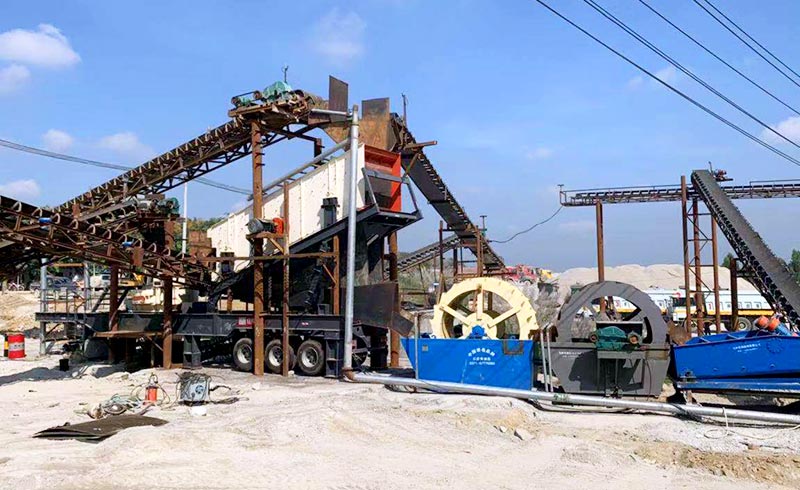

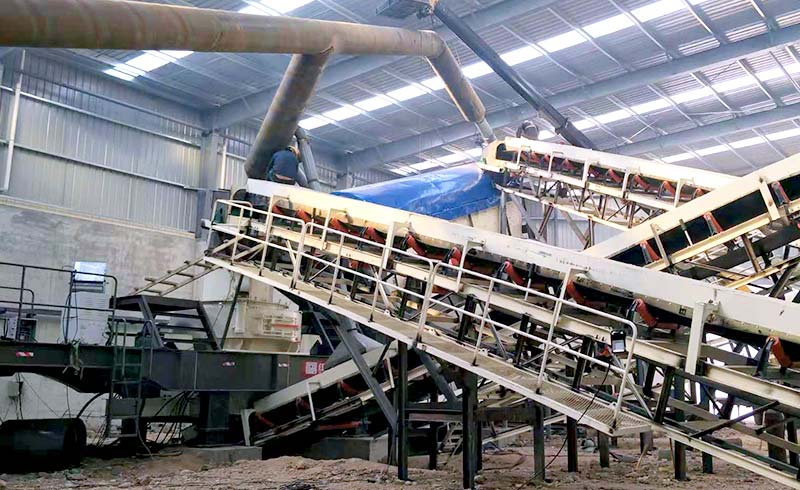

mobile crushing screening plant production site

Product
presentation

Company Advantages

Henan Hongxing Machinery Company has three national-level mechanical research institutes, more than 120 R&D personnel, and more than 50 national patents.

The company's products have passed ISO9001, CE and GOST international quality system certification.

We provide our clients with project design, process flow, standard, and non-standard product design and production. One-stop and nanny services before, during and after the sale.

So if you want to know anything, please ask us, such as prices and quotes, or you can send us an email at info@hxjq.com

Technical data

Wheeled Sand Making Machine + Vibrating Screen Mobile Crushing Station

Model	HX3S1848V08	HX3S1860V09	HX3S2160V103
Transportation Length（mm）	13500	15600	15600
Transportation Width（mm）	2830	2830	3100
Transportation Height（mm）	4350	4350	4480
Maximum Length（mm）	14650	16300	16300
Maximum Width（mm）	3900	3900	3900
Maximum Height（mm）	5980	6400	6550
Weight（t）	31	36	49
Tire Configuration	biax fitted	biax fitted	triaxial fitted
Sand maker	HVI0815	HVI0922	HVI1032
Discharging Belt Conveyor	B800×2.2M	B800×2.5M	B1000×2.5M
Under vibrating screen	B800×7M	B800×8M	B1000×8M
Vibrating Screen	3YZS1848	3YZS1860	3YZS2160

Wheeled Sand Making Machine + Vibrating Screen Mobile Crushing Station

Model	Transportation Length（mm）	Transportation Width（mm）
HX3S1848V08	13500	2830
HX3S1860V09	15600	2830
HX3S2160V103	15600	3100

For customization, please contact us.
