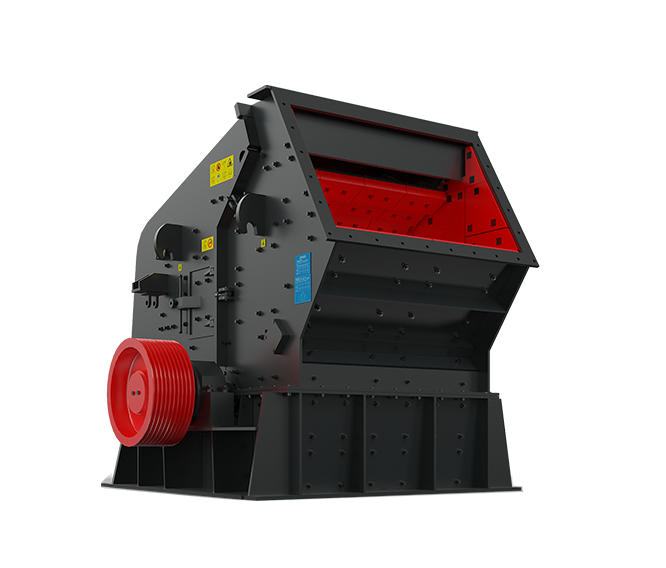

Quarry Crusher

Product Introduction

Quarry Crusher integrates the current domestic and international advanced impact crusher technology, the rotor and crushing cavity are refined design for different applications, and a large number of new high wear-resistant materials are used, which are greatly improved the performance and processing capacity of the equipment . It exhibits excellent crushing effect in applications of industries such as medium hardness and low abrasive quarrying and gravel, cement, concrete and asphalt recycling, slag recycling etc.

Working Principle

The motor drives the belt and pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw approaches the fixed jaw, and at the same time, the material is crushed to achieve the purpose of crushing; when the movable jaw descends, the angle between the toggle and the movable jaw becomes smaller. Under the role of pull rod and the spring, the movable jaw leaves the fixed jaw, the crushed materials are discharged from the lower mouth of the crushing cavity. With the continuous rotation of motor and the periodic motion of movable jaw, realizing mass production.

Working Principle

Quarry Crusher Features:

The final product is of nice particle shape
It is of reasonable grading and its fineness can be adjusted
It can meet the standard in the industry
The final product takes less production cost but a nice benefit.

Product
presentation

Product Advantages

The quarry crusher is of high automation degree, big crushing ratio, high production efficiency, big handling capacity. Besides, its final product is of cubes, less needle-like one, no crack, and high compression strength.

Maintaining the quarry crusher is easy. The quick-wear parts are made from the domestic high-strength and wear-resistant material, which have a long service life and can bring much economic benefit for clients.

The quarry crusher is successfully applied to the process of limestone, basalt, granite, pebble, etc. Its final product can meet the GB14685-2001 standard in quality, which can provide many industries the qualified aggregate, such as highway, railway, water conservancy, concrete mixing station, etc.

SOLUTION

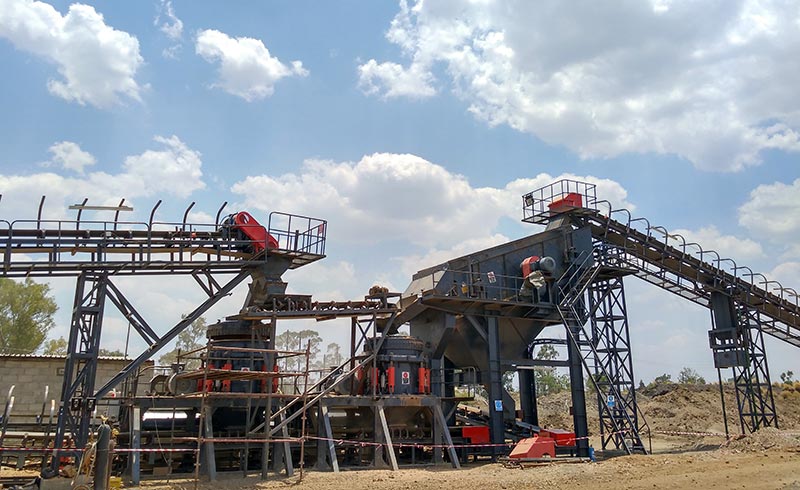

Copper Ore Crushing Project In Kenya

Copper ore crushing, can also be called the copper mine crushing production line. Its main equipment is cone crusher. The cone crusher optimum design and hydraulic protection maker it have fewer breakdowns. Generally, its fault-free operation ratio can surpass 90%

MORE +

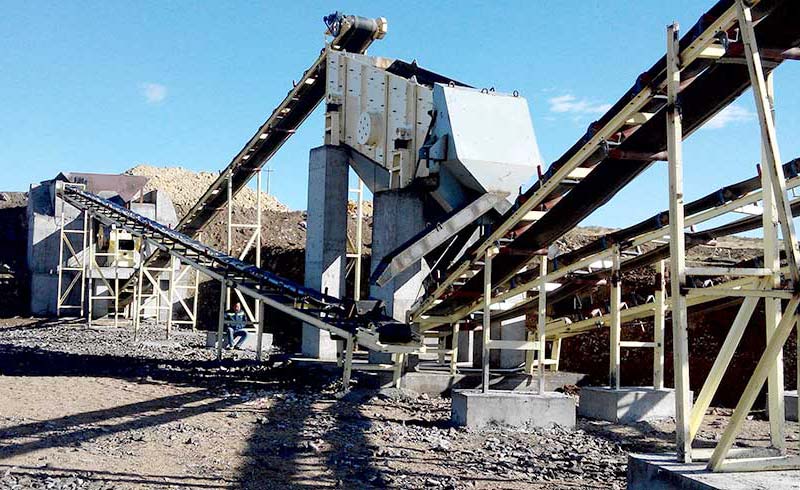

Stone Crusher Plant In Ethiopia

China Henan Hongxing Machinery Mining Machinery Co., Ltd. is a large-scale joint-stock enterprise mainly engaged in the production of heavy mining machines, as well as scientific research, production and sales. The crushing series machines produced by the company are widely used in metallurgical, ch

MORE +

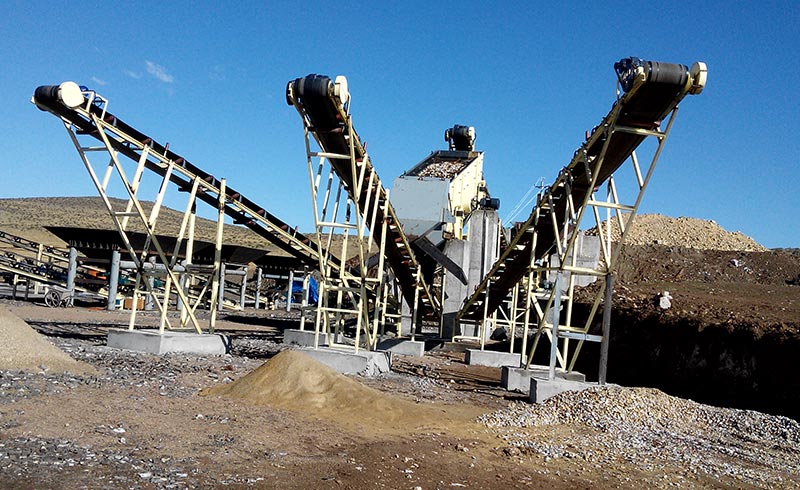

Ore Beneficiation Plant
