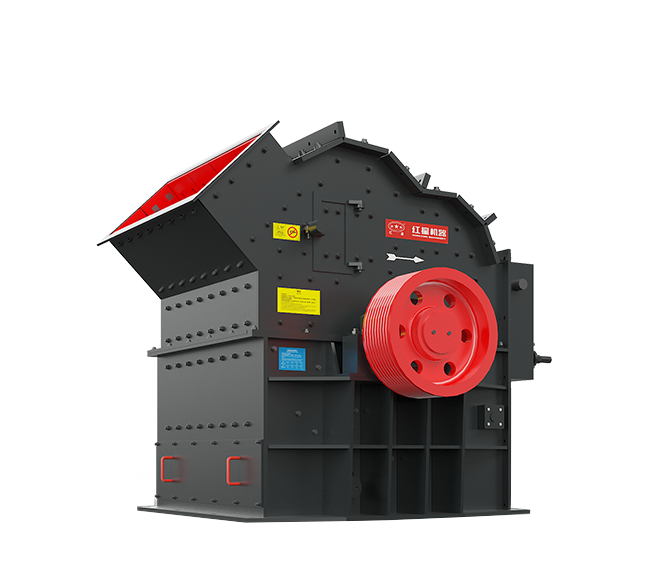

Tertiary Impact Crusher

Application fields: metallurgy, chemical, building materials, electricity, transportation and other departments.

Feeding size:＜120-＜190mm
Output size: 0-10mm

“40 years of senior mining machinery solutions”

Email us ( info@hxjq.com ) , we will reply to you within 24 hours. Get a quote

Made in China

Two weeks delivery, custom cycle, please consult

Product Introduction

The tertiary impact crusher is a new high-efficiency fine crushing equipment. It can be used for a wide range of crushed materials, complete structural design, being efficient and energy saving. It is the ideal equipment for fine crushing of mining, industrial, chemical, electronics, building materials, and other industries.

Tertiary Impact Crusher Features:

The products are sold to more than 160 countries and regions around the world. Such as South Africa, Zimbabwe, Nigeria, Ethiopia, Saudi Arabia, the Philippines, and other countries.
The tertiary crusher can superfine crush the material with high crushing strength and it is easy to realize fine grain material
Tertiary Impact Crusher has stable and reliable performance, simplified technology, simple structure, and convenient maintenance
No vibration and low noise, It has a big production capacity and the hammer has a long service life.

Product
presentation

Price of Tertiary Impact Crusher

Different types and sizes of stone crusher have different prices. The price is generally from thousands of dollars to ten thousand or hundreds of thousands of dollars. If you need our latest quotation, you can tell us your specific type and quantity after deciding its size. We will then send you the price. You can also send an email to info@hxjq.com to consult us.

Technical data

Tertiary Impact Crusher

PXJ tertiary impact crusher	Rotorø×Width (mm)
Specification	800×400	800×600	800×800	1010×1010	1200 ×1200	1400 ×1400	1600 ×1600	1800 ×1800
Feed opening size(mm)	400×185	500×250	550×300	1000×350	1200 ×450	1500 ×500	1600 ×550	1800 ×800
Feeding size (mm)	<120	<180	<180	<180	<180	<190	<190	<190
Discharging size (mm)	0-10	0-10	0-10	0-10	0-10	0-10	0-10	0-10
Adjustable range of discharge opening (mm)	5-50	5-50	5-50	5-50	5-50	5-50	5-50	5-50
Cement Clinker（t/h）	10-30	1040	20-45	25-55	35-90	50-150	85-210	125-270
Limestone（t/h）	18-45	23-55	28-65	35-75	45-110	50-150	95-260	140-310
Power（kw）	4P 37KW	4P 45KW	4P 45KW	4P 55KW	6P 110KW	6P 160KW	4P 250KW	4P 315KW
Theoretical weight	3.9	4.5	6	10.5	14.4	22	35	49.7

Tertiary Impact Crusher

Specification	Feeding size (mm)	Discharging size (mm)
800×400	<120	0-10
800×600	<180	0-10
800×800	<180	0-10
1010×1010	<180	0-10
1200×1200	<180	0-10
1400×1400	<190	0-10
1600×1600	<190	0-10
1800×1800	<190	0-10

For customization, please contact us.
